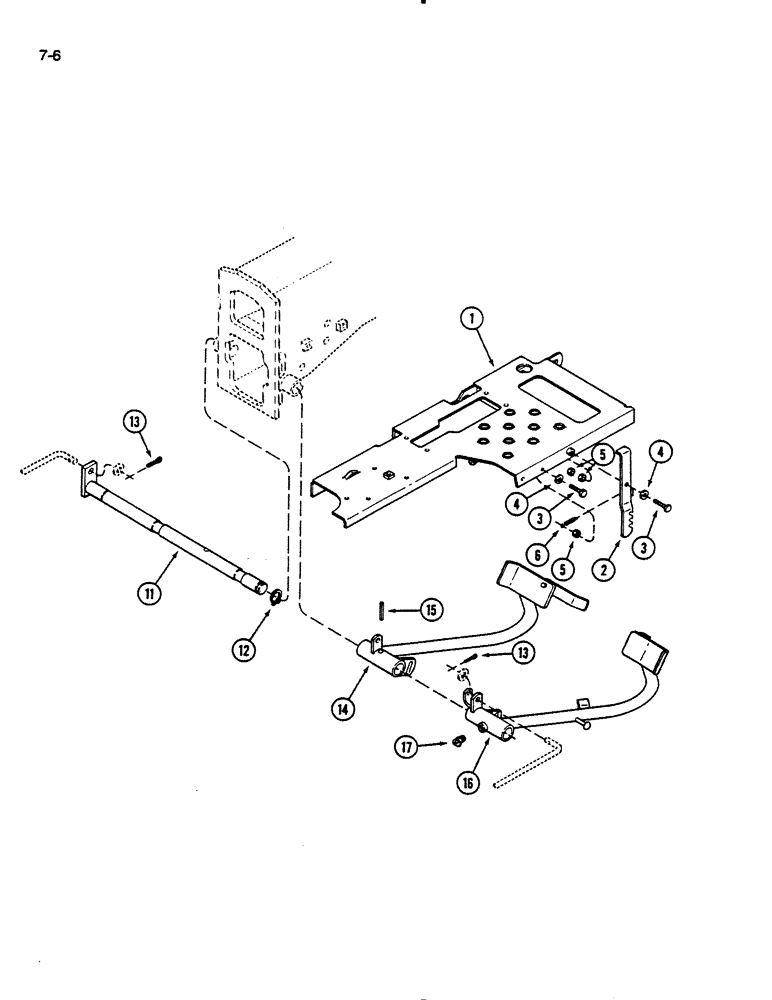

Запчасти Case IH 235 (7-06) - BRAKE PEDAL KIT, HYDROSTATIC TRANSMISSION ONLY (07) - BRAKES

1

1981390C1

STEP

- tractor, right

1шт.

2

1981361C1

LEVER

- step

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

3шт.

6

99334C1

VALVE SPRING

SPRING - lever return

1шт.

11

1981362C1

SHAFT HOUSING

SHAFT - brake pedal

1шт.

12

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

14

1981391C1

PEDAL

- brake, left

1шт.

15

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

16

1981392C1

PEDAL

- brake, right

1шт.

17

K622252

OILER

FITTING - grease, 45 degree (Replaces 219-40)

1шт.
