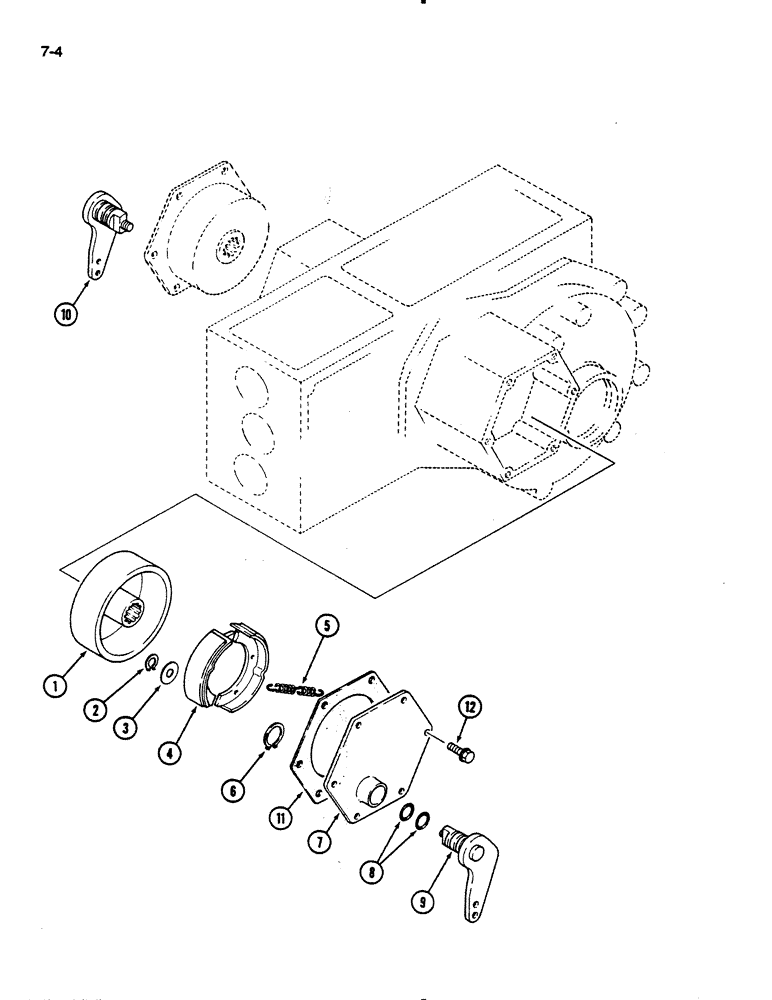

Запчасти Case IH 235 (7-04) - BRAKES (07) - BRAKES

1

1271772C1

DRUM HUB

DRUM - brake

2шт.

2

1271770C1

RING

- retaining

2шт.

3

1269559C1

WASHER

- stop plate

2шт.

4

1269560C1

SHOE (ASSY)

SHOE - brake

4шт.

5

1269561C1

VALVE SPRING

SPRING - return

4шт.

6

933105R1

SNAP RING,M22, Ext

RING - retaining, external, 20 mm

2шт.

7

1269565C1

PLATE ASSY.

PLATE - torque

2шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

4шт.

9

1273422C1

ARM

- actuating, left

1шт.

10

1269563C1

ARM

- actuating, right

1шт.

11

1269564C1

GASKET

- cover plate

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

12шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.
