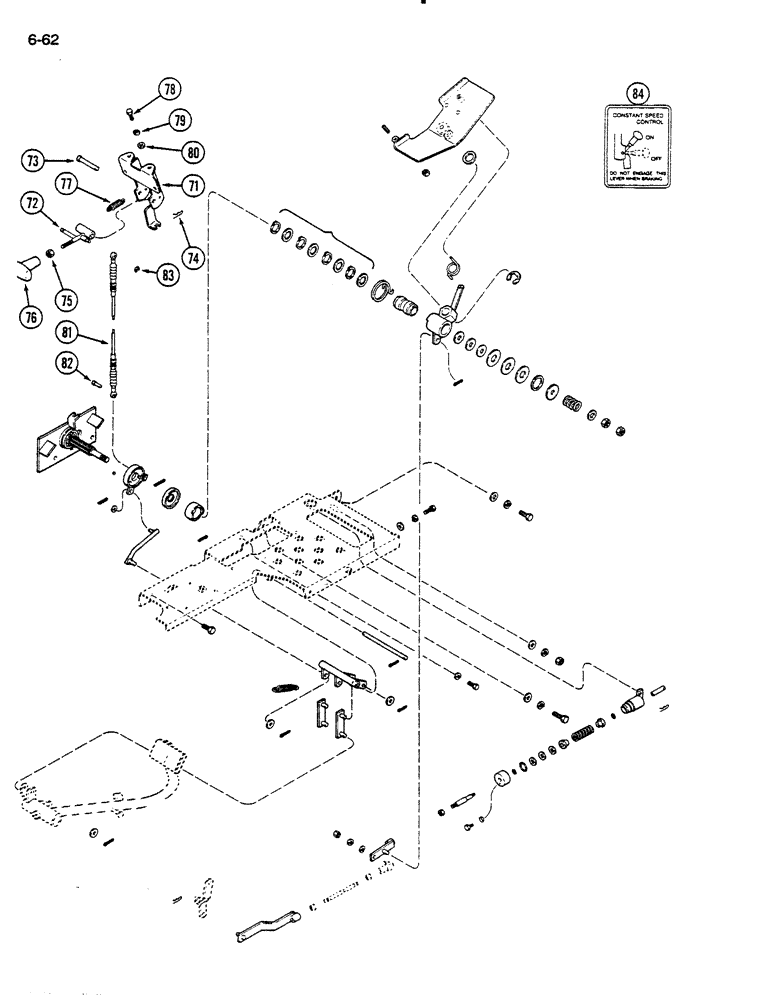

Запчасти Case IH 235 (6-62) - HYDROSTATIC FOOT PEDAL KIT, HYDROSTATIC TRANSMISSION ONLY (CONTD) (06) - POWER TRAIN

71

1963791C1

BRACKET

- lever holder

1шт.

72

1963792C1

LEVER

- control

1шт.

73

1963793C1

AXLE PIN

PIN - clevis

1шт.

74

1269735C1

AXLE PIN

PIN - hair

1шт.

75

825-1110

NUT,M10, Cl 8

hex, 10 mm - 1.5

2шт.

76

1963794C1

KNOB

- control lever

1шт.

77

1963795C1

VALVE SPRING

SPRING - control lever tension

1шт.

78

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

79

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

80

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

81

1963796C1

CABLE PULLING GRIP

CABLE - control linkage

1шт.

82

31137R1

CLEVIS PIN,M6 x 16

PIN - clevis, 6 x 16 mm

1шт.

83

1963797C1

CIRCLIP,M6

RING - retaining snap

1шт.

84

1963798C1

DECAL

- speed set

1шт.
