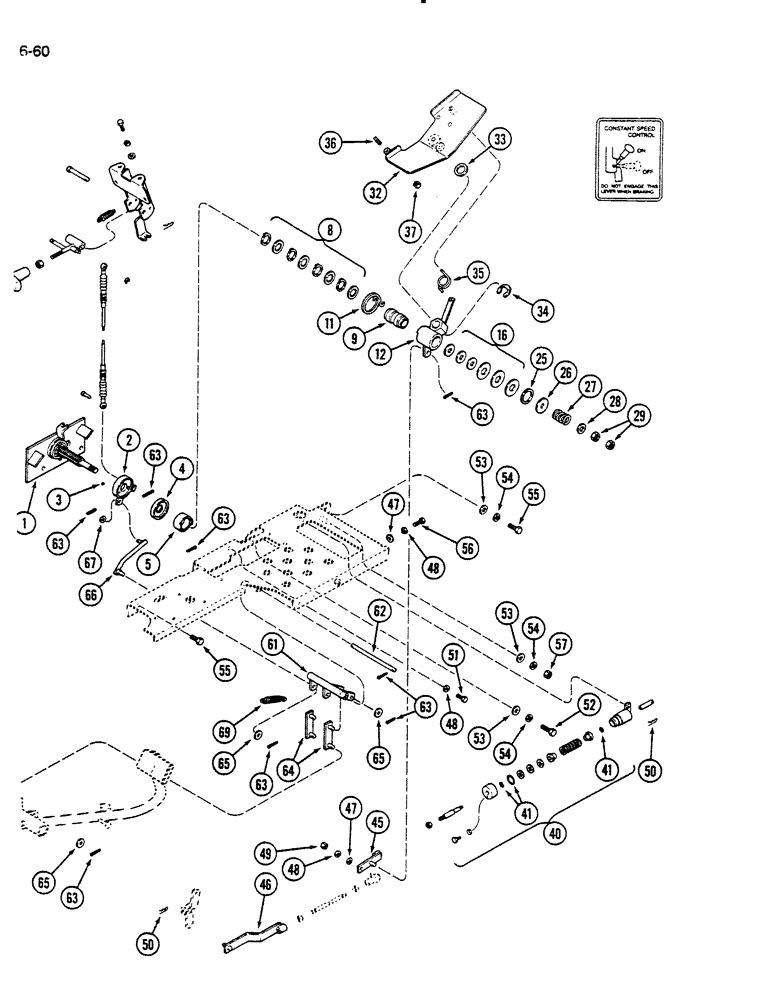

Запчасти Case IH 235 (6-60) - HYDROSTATIC FOOT PEDAL KIT, HYDROSTATIC TRANSMISSION ONLY (06) - POWER TRAIN

1

1963668C1

SHAFT HOUSING

SHAFT - foot pedal

1шт.

2

1963669C1

ARM

- pedal shaft

1шт.

3

17011R1

BALL

- steel, 1/4 inch diameter

3шт.

4

1963670C1

PLATE ASSY.

PLATE - arm

1шт.

5

1963671C1

BOSS

COLLAR - pedal shaft

1шт.

8

1963672C1

SET

KIT - plate washer

1шт.

9

1963673C1

COLLAR CLAMP

COLLAR - pedal shaft

1шт.

11

7322-2020

SPRING - collar (Replaces 1963674C1)

1шт.

12

1963675C1

ARM

- pedal shaft

1шт.

16

1963676C1

SET

KIT - liner shim

1шт.

25

1981371C1

SLEEVE

LINER - pedal shaft

1шт.

26

1963677C1

WASHER

- liner retaining

1шт.

27

1963678C1

VALVE SPRING

SPRING - liner tension

1шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

29

1963588C1

NUT

- hex jam special, M12

2шт.

32

1963679C1

PEDAL

- hydrostatic foot

1шт.

33

1981372C1

SLEEVE

LINER - foot pedal

1шт.

34

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

35

1269820C1

VALVE SPRING

SPRING - pedal return

1шт.

36

30318R1

SCREW - hex socket cup point set, M8 x 30 mm

1шт.

37

1282766C1

NUT

- hex jam special, M8

2шт.

40

1963780C1

VALVE SPRING

SPRING ASSEMBLY - return

2шт.

41

1963781C1

SET

KIT - o-ring sealing

1шт.

45

1963782C1

JOINT TURNING

BRACKET - linkage

1шт.

46

1963783C1

JOINT TURNING

BRACKET - pedal linkage

1шт.

47

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

48

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

49

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

1шт.

50

1963784C1

AXLE PIN

PIN - retaining hair

2шт.

51

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

52

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

1шт.

53

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

5шт.

54

892-11010

LOCK WASHER,M10

5шт.

55

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

56

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

57

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

61

1963785C1

ARM

- pedal linkage

1шт.

62

1963786C1

AXLE PIN

PIN - linkage arm

1шт.

63

632-602

PIN

- cotter, 3 x 16 mm

10шт.

64

1963787C1

DRAG LINK

LINK - arm

2шт.

65

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 9 x 21 x 2 mm

5шт.

66

1963788C1

ROD

- linkage arm

1шт.

67

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

69

1963789C1

VALVE SPRING

SPRING - arm return

1шт.
