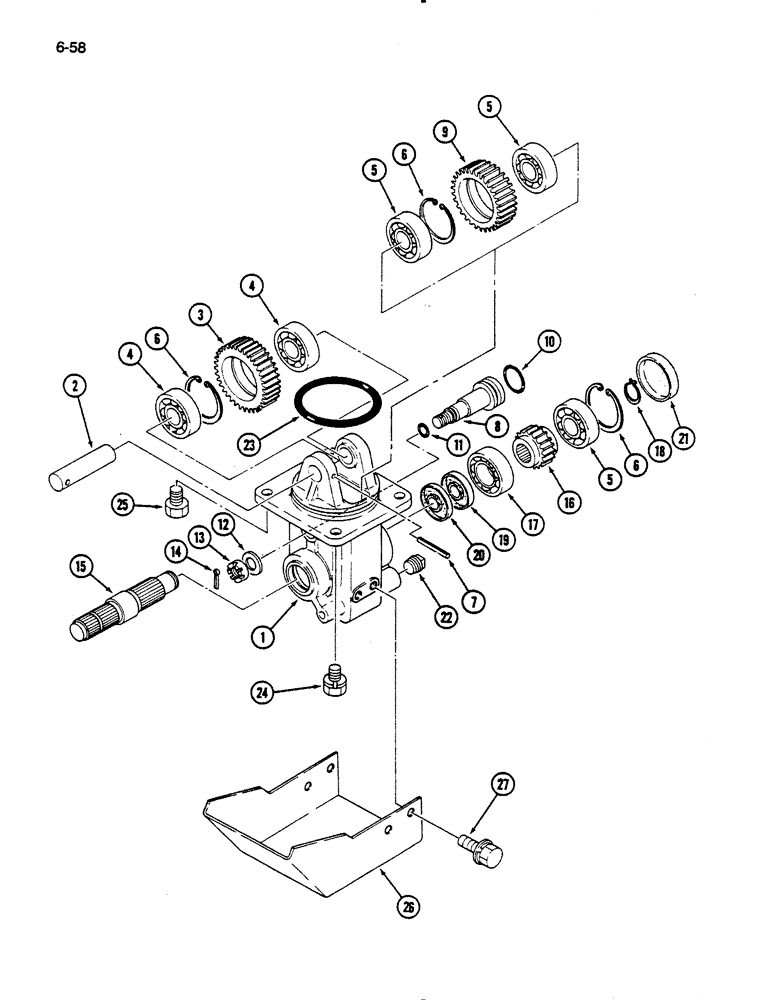

Запчасти Case IH 235 (6-58) - MID POWER TAKEOFF, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

99116C1

CASE

HOUSING - power takeoff, mid

1шт.

2

99117C1

SHAFT HOUSING

SHAFT - bearing

1шт.

3

99118C1

GEAR WHEEL

GEAR - 38 tooth

1шт.

4

1288022C91

BEARING, BALL

BEARING ASSEMBLY - ball, 51/64 inch ID

2шт.

5

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball, 51/64 inch ID

3шт.

6

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

3шт.

7

932238R1

LOCK PIN,M5 x 45, Slotted

PIN - slotted spring, 5 x 45 mm

1шт.

8

99119C1

SHAFT HOUSING

SHAFT - input gear

1шт.

9

99120C1

GEAR WHEEL

GEAR - 35tooth

1шт.

10

1269876C1

O-RING

O-RING - 26 mm ID

1шт.

11

1282749C1

O-RING

O-RING - 12 mm ID

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

1275160C1

NUT

- castle, M12

1шт.

14

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

15

99121C1

SHAFT HOUSING

SHAFT - mid power takeoff

1шт.

16

99122C1

GEAR WHEEL

GEAR - 20 tooth

1шт.

17

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball, 63/64 inch ID

1шт.

18

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

19

1273181C1

OIL SEAL

SEAL - oil, 1-7/32 ID x 1-21/32 OD x 9/32 inch wide

1шт.

20

1962557C1

OIL SEAL

SEAL - oil

1шт.

21

1962637C1

SEAL

CAP - seal

1шт.

22

444699

PLUG,Hex Soc, 3/8"-18

- drain, hex socket head, 3/8-18 PT

1шт.

23

1962507C1

O-RING

- housing

1шт.

24

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

25

1273558C1

BOLT,Hex, M12 x 1.25 x 35mm

BOLT - hex, special

1шт.

26

99123C1

COVER ASSY

COVER - power takeoff

1шт.

27

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.
