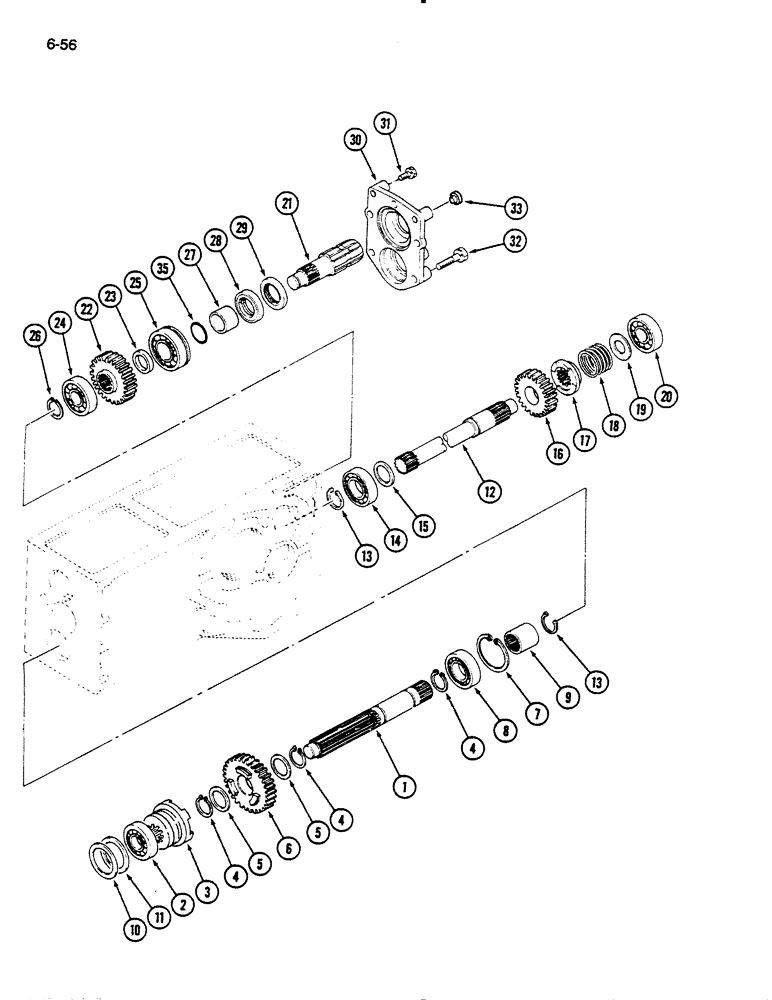

Запчасти Case IH 235 (6-56) - PTO GEARS AND SHAFTS, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

1269421C1

SHAFT HOUSING

SHAFT - power takeoff input

1шт.

2

1275062C91

BALL BEARING,20 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

1шт.

3

1269413C1

CLUTCH ASSEMBLY

CLUTCH - power takeoff

1шт.

4

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

3шт.

5

1275063C1

THRUST WASHER

- thrust

2шт.

6

1269415C1

GEAR WHEEL

GEAR - 30tooth

1шт.

7

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

8

1271857C91

BEARING, BALL

BEARING ASSEMBLY

1шт.

9

1269414C1

COUPLING

- shafts

1шт.

10

1271872C1

SHIM

- 51 mm OD

1шт.

11

1271873C1

SHIM

- 72 mm OD

1шт.

12

1269420C1

SHAFT HOUSING

SHAFT - input

1шт.

13

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

14

1271857C91

BEARING, BALL

BEARING - ball, 63/64 ID x 19/32 inch wide

1шт.

15

1269418C1

WASHER

- 34 mm OD

1шт.

16

1269419C1

GEAR WHEEL

GEAR - 18 tooth

1шт.

17

1269411C1

HUB CAP

HUB - input shaft

1шт.

18

1269412C2

VALVE SPRING

SPRING - hub

1шт.

19

1275226C1

NOZZLE HOLDER

HOLDER - spring

1шт.

20

1271862C91

BEARING, BALL

BEARING - ball, 51/64 ID x 19/32 inch wide

1шт.

21

1269423C1

SHAFT HOUSING

SHAFT - power takeoff

1шт.

22

1269417C1

GEAR WHEEL

GEAR - 24tooth

1шт.

23

1269410C1

WASHER

- spacer

1шт.

24

1271862C91

BEARING, BALL

BEARING - ball, 31/64 ID x 19/32 inch wide

1шт.

25

1271865C91

BEARING, BALL

BEARING - ball, 63/64 ID x 43/64 inch wide

1шт.

26

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

27

1269416C2

BUSHING

SPACER - power takeoff shaft

1шт.

28

1273182C1

OIL SEAL

SEAL - oil

1шт.

29

1273176C1

OIL SEAL

SEAL - oil

1шт.

30

1269422C1

COVER ASSY

COVER - housing, rear

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

32

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

33

NSS

NOT SOLD SEPARAT

PLUG - cover

4шт.

35

1282979C1

O-RING

O-RING - 25 mm ID (Replaces 1269875C1)

1шт.
