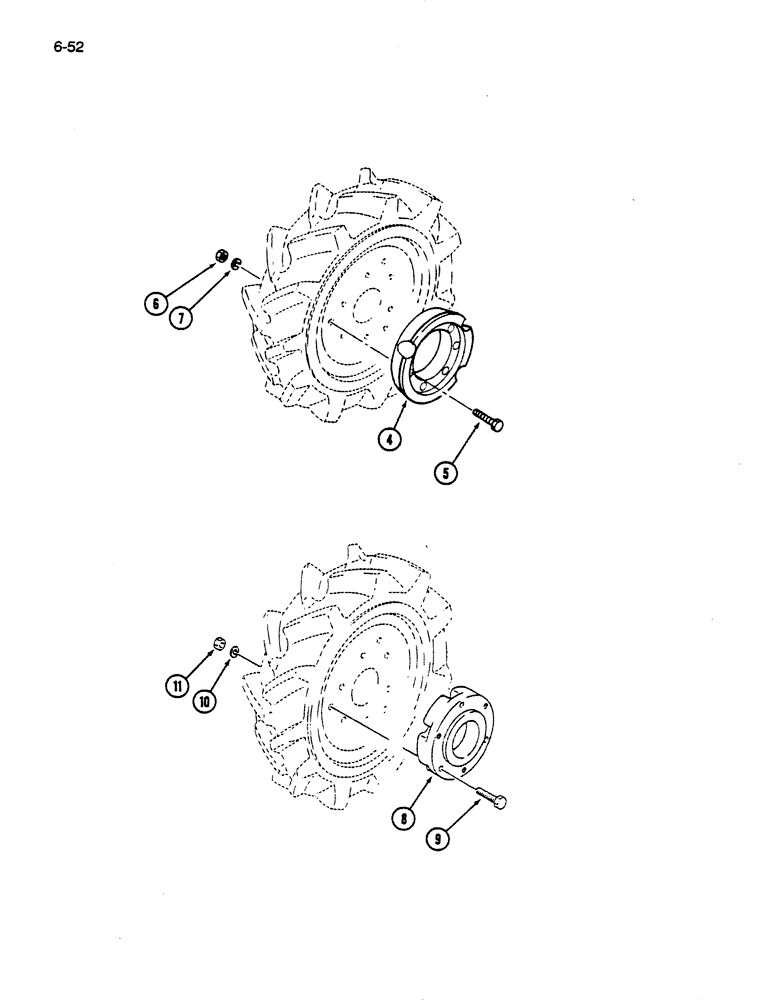

Запчасти Case IH 235 (6-52) - REAR WHEEL WEIGHTS, 8.00-18 R1, 9.5-18 TURF AND 31 X 15.5-15 TURF TIRES (06) - POWER TRAIN

1962624C91

WEIGHT ATTACHMENT - rear wheel (Machinery item), Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

WEIGHT - rear wheel, 73 Ib. (33 kg.)

2шт.

5

514-1015

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

6

525-5109

NUT,M16 x 1.5, Cl 8

- hex, wheel weight, M16 x 1.50

6шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

6шт.

1962602C91

WEIGHT

ATTACHMENT - rear wheel (Machinery item), 9.5-16 R1tire, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

WEIGHT - rear wheel, 26 pound, 9.5-16 R1tire

2шт.

9

30844R1

BOLT,Hex, M14 x 2 x 90mm, Cl 8.8

rear wheel weights 9.5-16 R1tire Hex, M14 x 90, 8.8

6шт.

10

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, Rear wheel weights 9.5-16 R1 tire

6шт.

11

30766R1

NUT,M14, Cl 8

- hex, M14, rear wheel weights 9.5-16 R1tire

6шт.
