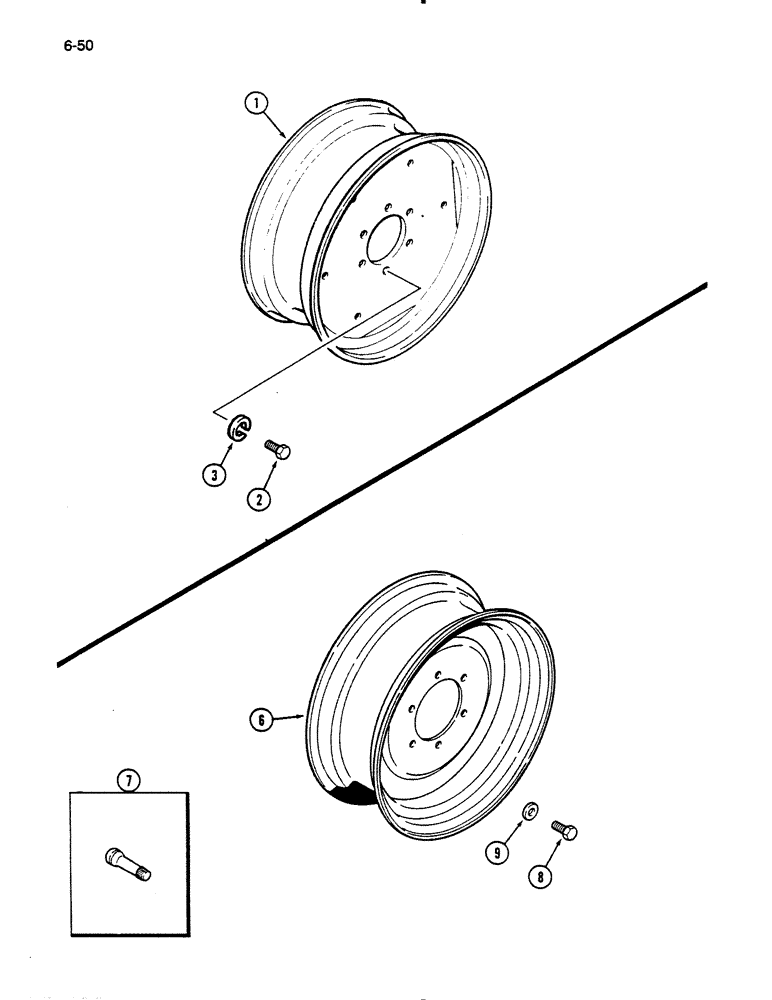

Запчасти Case IH 235 (6-50) - WHEELS, REAR (06) - POWER TRAIN

1

1271840C1

WHEEL (STEERING)

WHEEL - rear, W6 x 18 (For 8.00 - 18 R1 tire)

2шт.

1

1271844C1

WHEEL (STEERING)

WHEEL - rear, W8 x 18 (For 9.5 - 18 turf tire)

2шт.

1

1288398C1

WHEEL (STEERING)

WHEEL - rear, 13 LB x 15 (For 31 x 15.5 - 15 turf tire)

2шт.

1

99351C1

WHEEL (STEERING)

WHEEL - rear, W8 x 16 (For 9.5 - 16 R1 tire)

2шт.

2

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - wheel mounting, M14 x 30 mm

12шт.

3

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

6

1963756C1

WHEEL (STEERING)

WHEEL - rear, 15 x 10 LB (For 31 x 13.50-15 tire)

2шт.

7

387897R91

VALVE STEM

VALVE - wheel

2шт.

8

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

9

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.
