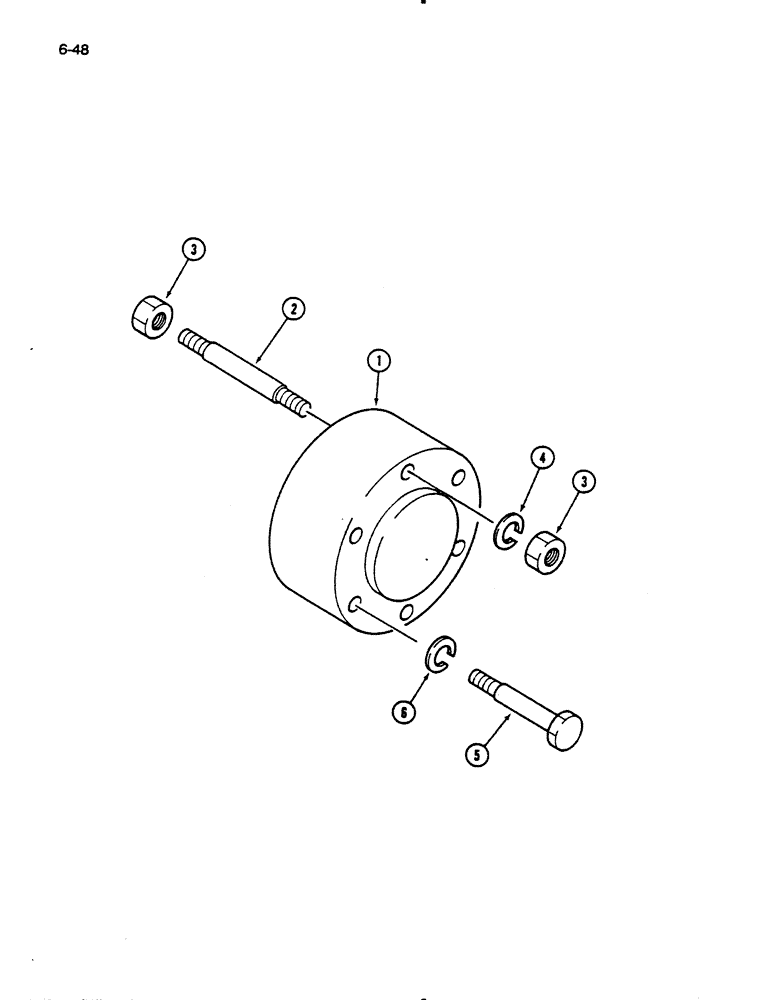

Запчасти Case IH 235 (6-48) - REAR WHEEL SPACER (06) - POWER TRAIN

1

1282668C1

SPACER

- rear wheel, 3 inch (76 mm)

2шт.

These spacers are restricted for use with mower work only.

1шт.

2

1282585C1

STUD

- wheel spacer, 100 mm long

4шт.

3

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

8шт.

4

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

5

514-921

BOLT,Hex, M14 x 1.5 x 100mm, Cl 8.8

- wheel spacer, M14 x 1.50 x 100 mm

8шт.

6

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.
