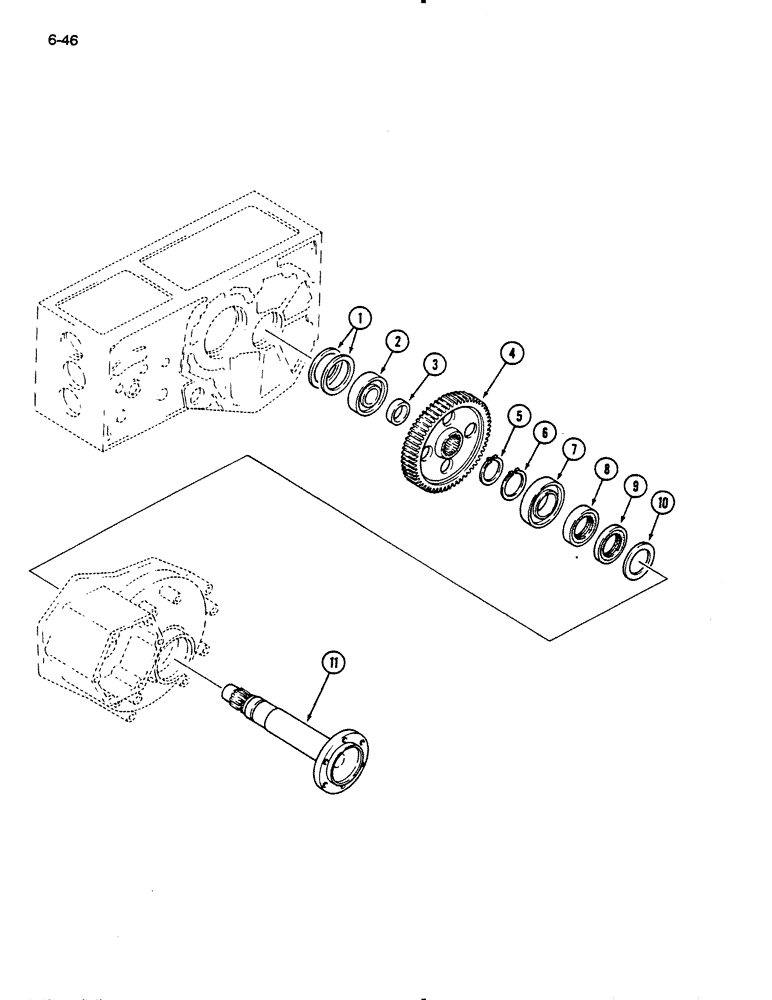

Запчасти Case IH 235 (6-46) - REAR AXLE (06) - POWER TRAIN

1

1273262C1

SHIM

KIT - axle

1шт.

2

1271859C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

3

1269489C1

SPACER

- axle

2шт.

4

1269488C1

GEAR WHEEL

GEAR - drive, 72 tooth

2шт.

5

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

2шт.

6

933283R1

SNAP RING,M45, Ext

RING - retaining, external, 41 mm ID

2шт.

7

1271860C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

8

1273185C1

OIL SEAL

SEAL - oil, 23/64 inch wide

2шт.

9

1273177C1

OIL SEAL

SEAL - oil, 15/64 inch wide

2шт.

10

1269490C1

WASHER

- 67 mm OD

2шт.

11

1269491C1

SHAFT HOUSING

SHAFT - rear axle

2шт.
