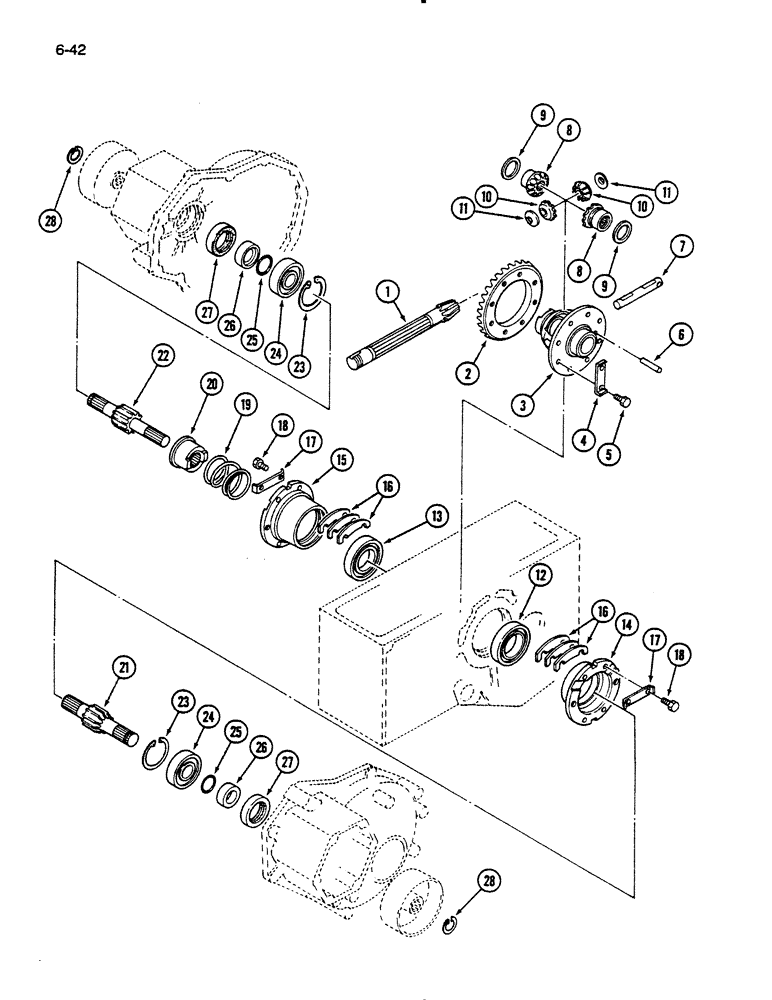

Запчасти Case IH 235 (6-42) - DIFFERENTIAL, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1273765C1

SHAFT HOUSING

SHAFT - pinion

1шт.

2

1962862C1

GEAR WHEEL

GEAR - ring, 35 tooth (Replaces 1269478C1)

1шт.

3

1269473C1

CASE

HOUSING - differential

1шт.

4

1273457C1

SUPPORT ASSY.

STRAP - lock

4шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

8шт.

6

31122R1

LOCK PIN,M6 x 40, Slotted

PIN - slotted spring, 8 x 40 mm

1шт.

7

1269465C1

SHAFT HOUSING

SHAFT - side gears

1шт.

8

1269479C1

GEAR WHEEL

GEAR - side, 16 tooth

2шт.

9

1269467C1

THRUST WASHER

- thrust

2шт.

10

1269483C1

GEAR WHEEL

GEAR - bevel, 10 tooth

2шт.

11

1269466C1

THRUST WASHER

- thrust

2шт.

12

1271854C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

13

1271861C91

BALL BEARING

ASSEMBLY - ball

1шт.

14

1269475C1

NOZZLE HOLDER

HOLDER - bearing, left

1шт.

15

1269474C1

HOLDER

- bearing, right

1шт.

16

1273258C1

SHIM

KIT - differential

1шт.

17

1269468C1

SUPPORT ASSY.

STRAP - locking

6шт.

18

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

12шт.

19

1269469C1

VALVE SPRING

SPRING - hub

1шт.

20

1269480C1

HUB CAP

HUB - differential

1шт.

21

1269481C1

SHAFT HOUSING

SHAFT - differential, left

1шт.

22

1269482C1

SHAFT HOUSING

SHAFT - differential, right

1шт.

23

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

24

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

2шт.

25

1282979C1

O-RING

O-RING - 25 mm ID (Replaces 1269875C1)

2шт.

26

1269470C1

SPACER

- axle seal

2шт.

27

1273186C1

OIL SEAL

SEAL - oil

2шт.

28

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.
