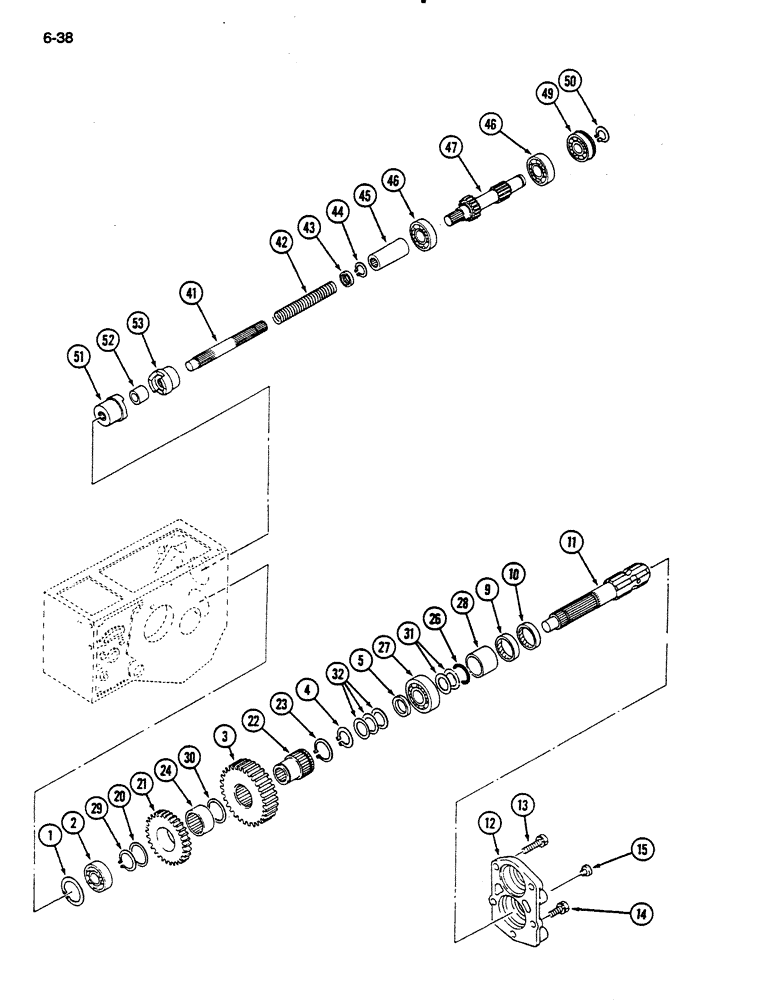

Запчасти Case IH 235 (6-38) - PTO SHAFT, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

2

1962540C1

BALL BEARING

BEARING - ball

1шт.

3

99197C1

GEAR WHEEL

GEAR - 49 tooth

1шт.

4

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

5

99199C1

WASHER

- collar

1шт.

9

1273182C1

OIL SEAL

SEAL - oil

1шт.

10

1273176C1

OIL SEAL

SEAL - oil

1шт.

11

1962636C1

SHAFT

- power takeoff

1шт.

12

1273743C1

COVER ASSY

COVER - differential housing

1шт.

13

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

15

NSS

NOT SOLD SEPARAT

PLUG - cover

4шт.

21

99196C1

GEAR WHEEL

GEAR - 41 tooth

1шт.

22

99195C1

SHAFT HOUSING

SHAFT - coupler

1шт.

23

933683R1

SNAP RING,M36, Ext

- retaining, external, 33 mm ID

1шт.

24

1962538C1

BEARING ASSY

BEARING - needle

1шт.

26

1282979C1

O-RING

O-RING - 25 mm ID (Replaces 1269875C1)

1шт.

27

1962453C2

TAPERED BEARING

BEARING - ball

1шт.

28

99198C2

BUSHING

- power takeoff shaft

1шт.

29

933082R1

SNAP RING,M32, Ext

RING - retaining, external, 29 mm ID

1шт.

30

99200C1

WASHER

- flat

2шт.

31

1273013C2

STRIPPER PACKAGE

KIT - shim, power takeoff shaft

1шт.

32

1273748C1

SHIM

KIT - shim, power takeoff shaft

1шт.

41

1273735C1

SHAFT HOUSING

SHAFT - power takeoff drive

1шт.

42

1273736C1

VALVE SPRING

SPRING - clutch

1шт.

43

1273737C1

RETAINER

- hood

1шт.

44

933328R1

SNAP RING,M16, Ext

RING - retaining, external, 14 mm ID

1шт.

45

1273738C1

COUPLING

- input shaft

1шт.

46

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

47

99194C1

SHAFT HOUSING

SHAFT - 11 and 18 tooth

1шт.

49

1273747C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

50

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

51

1273733C1

CLUTCH ASSEMBLY

CLUTCH - power takeoff

1шт.

52

1273744C1

BUSHING

- clutch

1шт.

53

1273734C1

CLUTCH ASSEMBLY

CLUTCH - power takeoff

1шт.
