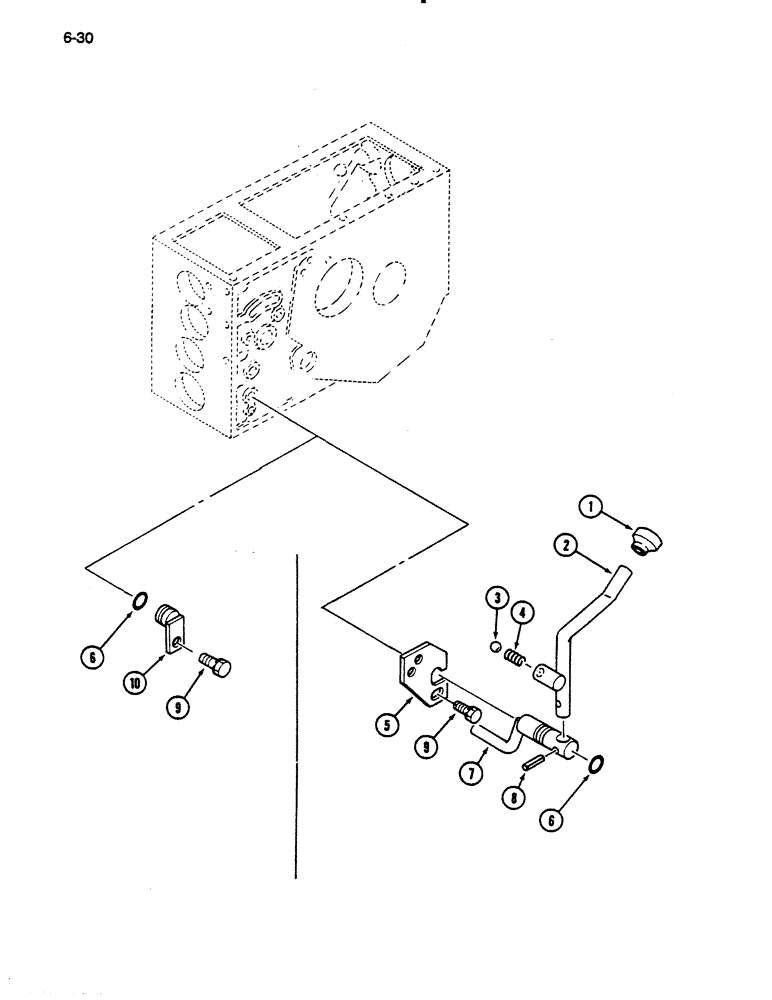

Запчасти Case IH 235 (6-30) - MFD CONTROLS, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1273497C1

KNOB

- MFD lever

1шт.

2

1282521C1

LEVER

- MFD

1шт.

3

17011R1

BALL

- 11/32 inch diameter

1шт.

4

1273456C1

VALVE SPRING

SPRING - lever

1шт.

5

1282522C1

PLATE ASSY.

PLATE - MFD linkage

1шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

7

1282523C1

LEVER

- MFD linkage

1шт.

8

31123R1

LOCK PIN,M5 x 22, Slotted

PIN - slotted spring, 5 x 22 mm

1шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm, (2 wheel drive)

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

10

1282524C1

PLUG

- control (2 wheel drive)

1шт.
