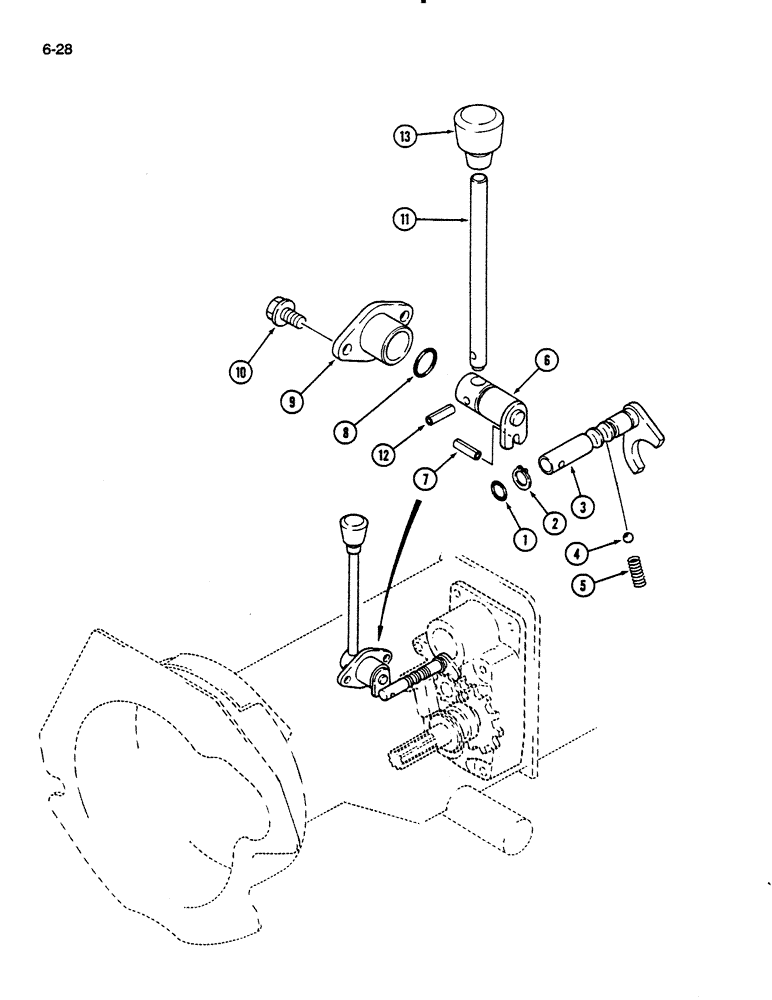

Запчасти Case IH 235 (6-28) - MFD CONTROLS, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

1269869C1

O-RING

O-RING - 10 mm ID

1шт.

2

933332R1

SNAP RING,M14, Ext

RING - retaining, external, 13 mm ID

1шт.

3

1273468C1

SHAFT HOUSING

RAIL - shift

1шт.

4

17011R1

BALL

- 11/32 inch diameter

1шт.

5

1273456C1

VALVE SPRING

SPRING - shift rail

1шт.

6

1273469C1

LEVER

- shift rail

1шт.

7

31120R1

LOCK PIN,M6 x 22, Slotted

PIN - slotted spring, 6 x 22 mm

1шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

9

1273470C1

HUB CAP

HUB - shifter

1шт.

10

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

11

1273471C1

LEVER

- shift, MFD

1шт.

12

31123R1

LOCK PIN,M5 x 22, Slotted

PIN - slotted spring, 5 x 22 mm

1шт.

13

1273497C1

KNOB

- shift lever

1шт.
