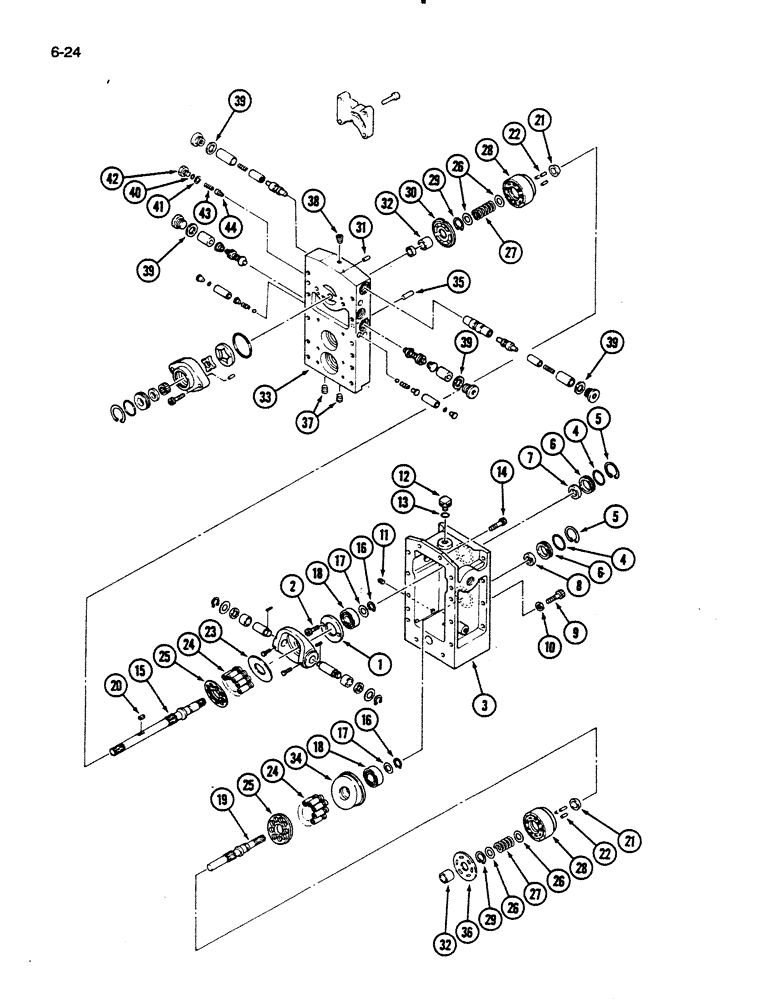

Запчасти Case IH 235 (6-24) - HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

99115C2

TRANSMISSION

ASSEMBLY - hydrostatic, Includes: Ref. 1 - 44 and 45 - 79 on Figure 6-26

1шт.

1

1275280C1

PLATE ASSY.

PLATE - bearing

1шт.

2

31260R1

HEX SOC SCREW,M6 x 10mm, Cl 12.9

BOLT - hex socket, M6 x 10 mm

2шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - transmission (Order 99115C2)

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING -35 mm ID

2шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

5

933235R1

SNAP RING,M40, Int

RING - retaining

2шт.

6

NSS

NOT SOLD SEPARAT

COVER - oil seal

2шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

9

31261R1

HEX SOC SCREW,M8 x 35mm, Cl 12.9

BOLT - hex socket, M8 x 35 mm

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - washer, M8

2шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

11

444693

PLUG,Hex Soc, 1/4"-18, Brass

- slotted, headless, 1/4 PT

1шт.

12

1275185C1

PLUG

- square head

1шт.

13

1275181C1

O-RING

O-RING -25 mm ID

1шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

14

31259R1

HEX SOC SCREW,M10 x 25mm, Cl 12.9

BOLT - hex socket, M10 x 25 mm

12шт.

15

1275286C1

SHAFT HOUSING

SHAFT - driving

1шт.

16

933123R1

SNAP RING,M20, Ext

RING - retaining

1шт.

17

1275288C1

PLATE ASSY.

PLATE - flat, 28 mm OD

2шт.

18

1271855C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

19

1275289C1

SHAFT HOUSING

SHAFT - transmission

1шт.

20

1275290C1

KEY

- square, 5 x 6 mm

1шт.

21

1275291C1

KNUCKLE JOINT

KNUCKLE - transmission shaft

2шт.

22

1275292C1

AXLE PIN

PIN - dowel, rounded end

6шт.

23

1275293C1

PLATE ASSY.

PLATE - flat

1шт.

24

98977C91

PISTON ASSY.

PISTON ASSEMBLY - transmission, set

2шт.

25

1275297C1

RETAINER

- piston

2шт.

26

1275298C1

PLATE ASSY.

PLATE - flat, 28 mm OD

4шт.

27

1275300C1

VALVE SPRING

SPRING - cylinder block

2шт.

28

1275301C1

BLOCK

- cylinder

2шт.

29

933917R1

SNAP RING,M28, Int

RING - retaining, internal, 30 mm OD

2шт.

30

1962650C1

LARGE PLATE

PLATE - valve

1шт.

31

31263R1

DOWEL,M4 x 12

PIN - dowel, hardened, 4 x 12 mm

2шт.

32

1275305C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

2шт.

33

1963598C1

NOZZLE HOLDER

BLOCK - valve plate, Replaces 1962651C1, were used on units prior to S/N 17626900

1шт.

34

1275307C1

PLATE ASSY.

PLATE - angled

1шт.

35

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 OD x 20 mm

2шт.

36

1275309C1

PLATE ASSY.

PLATE - valve

1шт.

37

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, 1/4-18 PT

2шт.

38

444689

PLUG,Hex Soc, 1/8"-27, Brass

- hex socket, 1/8-27 PT

3шт.

39

1275190C1

SEALING RING

SEAL - ring

4шт.

1275190C1 is a Valve Kit, Not a Valve Assy.

1шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

1962668C2

LOCK VALVE

VALVE ASSEMBLY - low pressure, Includes: Ref. 40 - 44

1шт.

40

1962654C1

SHIM

- valve

1шт.

41

1275191C1

RING

SEAL - ring

1шт.

Part of Oil Seal Kit, P/N 98976C92

1шт.

42

1962668C2

LOCK VALVE

PLUG - low pressure valve

1шт.

43

1275332C2

VALVE SPRING

SPRING - valve

1шт.

44

1962668C2

LOCK VALVE

SPOOL - valve

1шт.

98976C92

OIL SEAL

SEAL KIT - oil, Includes: Ref. 4, 6, 7, 8, 10, 13, 39, 41 on Figures 6-24 and 6-26

1шт.
