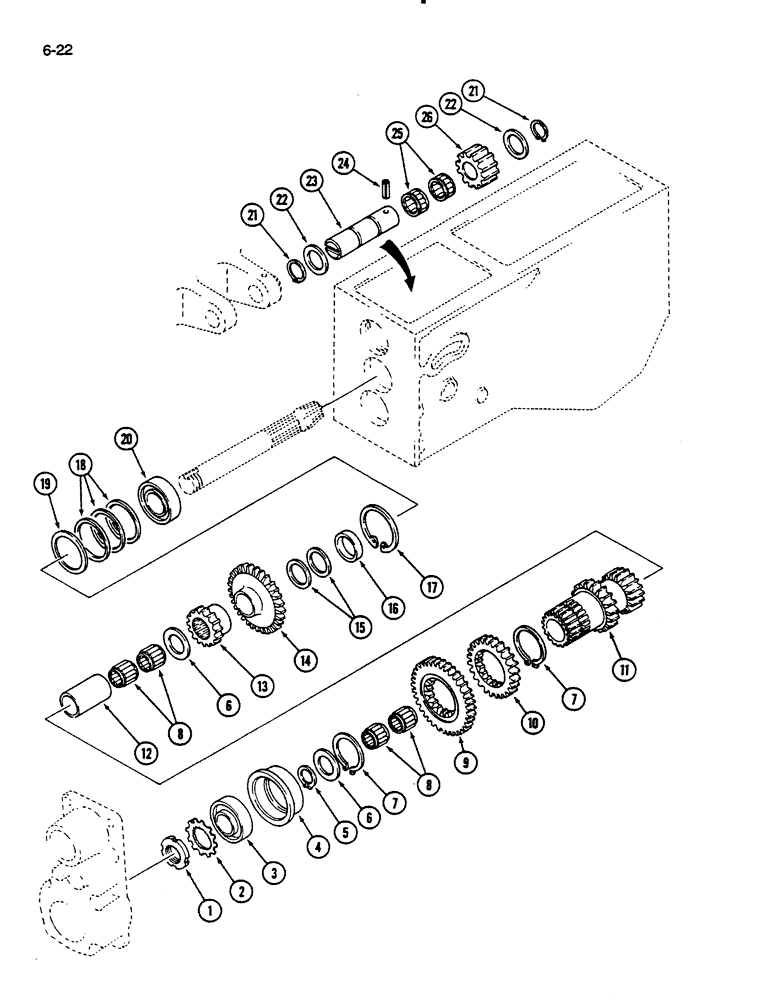

Запчасти Case IH 235 (6-22) - SELECTOR AND COUNTER GEARS LOWER, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT - bearing lock, M25 x 1.5

1шт.

2

31101R1

LOCK WASHER

- lock, 25 mm

1шт.

3

1273175C91

TAPERED BEARING

ASSEMBLY - roller, taper

1шт.

4

1269456C1

WASHER

HOLDER - bearing

1шт.

5

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

6

1273563C1

SHIM

- 25 x 39 x 1 mm

2шт.

7

933283R1

SNAP RING,M45, Ext

RING - retaining, external, 41 mm ID

2шт.

8

1273564C91

NEEDLE BEARING

ASSEMBLY - needle

4шт.

9

1269454C1

GEAR WHEEL

GEAR - 30 tooth

1шт.

10

1269455C1

GEAR WHEEL

GEAR - 30 tooth

1шт.

11

1269463C1

SHAFT HOUSING

SHAFT - 18 and 23 tooth

1шт.

12

1269457C1

SPACER

- 52 mm long

1шт.

13

1269458C1

GEAR WHEEL

GEAR - 18 tooth

1шт.

14

1269459C1

GEAR WHEEL

GEAR - 34 tooth

1шт.

15

1273569C1

SHIM

KIT - range gear

1шт.

16

1269460C1

WASHER

SPACER - range gear

1шт.

17

1273565C1

RING

- retaining

1шт.

18

1273570C1

SHIM

KIT - drive pinion

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - drive pinion

1шт.

20

1273567C91

TAPERED BEARING

BEARING ASSEMBLY - taper roller

1шт.

21

934001R1

SNAP RING,M18, Ext

RING - retaining, external, 16 mm ID

2шт.

22

1273568C1

SHIM

- 30 mm OD

2шт.

23

1269461C1

SHAFT HOUSING

SHAFT - transmission

1шт.

24

591184R1

PIN,3/16" x 1 1/4", Coiled

- slotted spring, 5 x 32 mm

1шт.

25

1273325C91

NEEDLE BEARING

ASSEMBLY - needle

2шт.

26

1269462C1

GEAR WHEEL

GEAR - 16 tooth

1шт.
