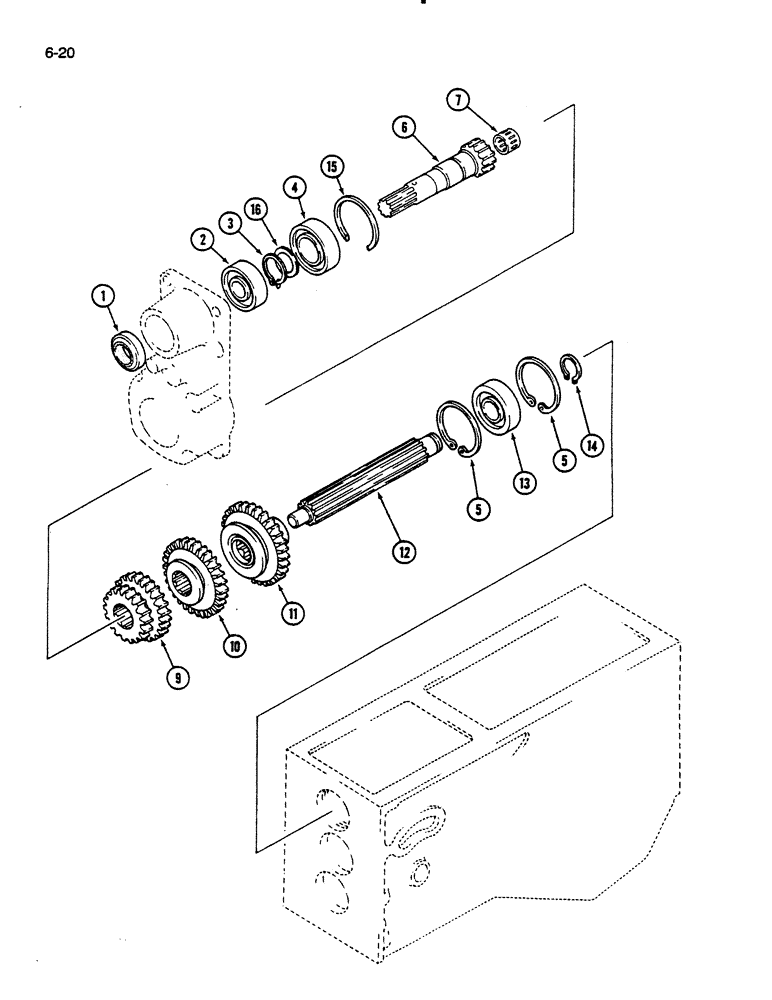

Запчасти Case IH 235 (6-20) - SELECTOR AND COUNTER GEARS UPPER, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

1273179C1

OIL SEAL

SEAL - oil

1шт.

2

1271856C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

3

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

4

1273561C91

ROLLER BEARING,25 mm ID x 52 mm OD x 17 mm

ASSEMBLY - roller

1шт.

5

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

2шт.

6

1269453C2

SHAFT HOUSING

SHAFT - drive

1шт.

7

1273557C91

NEEDLE BEARING

ASSEMBLY - needle

1шт.

9

1269451C1

GEAR WHEEL

GEAR - 19 and 27 tooth

1шт.

10

1269448C1

GEAR WHEEL

GEAR - 32 tooth

1шт.

11

1269450C2

GEAR WHEEL

GEAR - 15 and 33 tooth

1шт.

12

1269452C2

SHAFT HOUSING

SHAFT - select

1шт.

13

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

14

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

15

1273643C1

RING

- retaining

1шт.

16

1273642C1

SHIM

- bearing, 51 mm OD

1шт.
