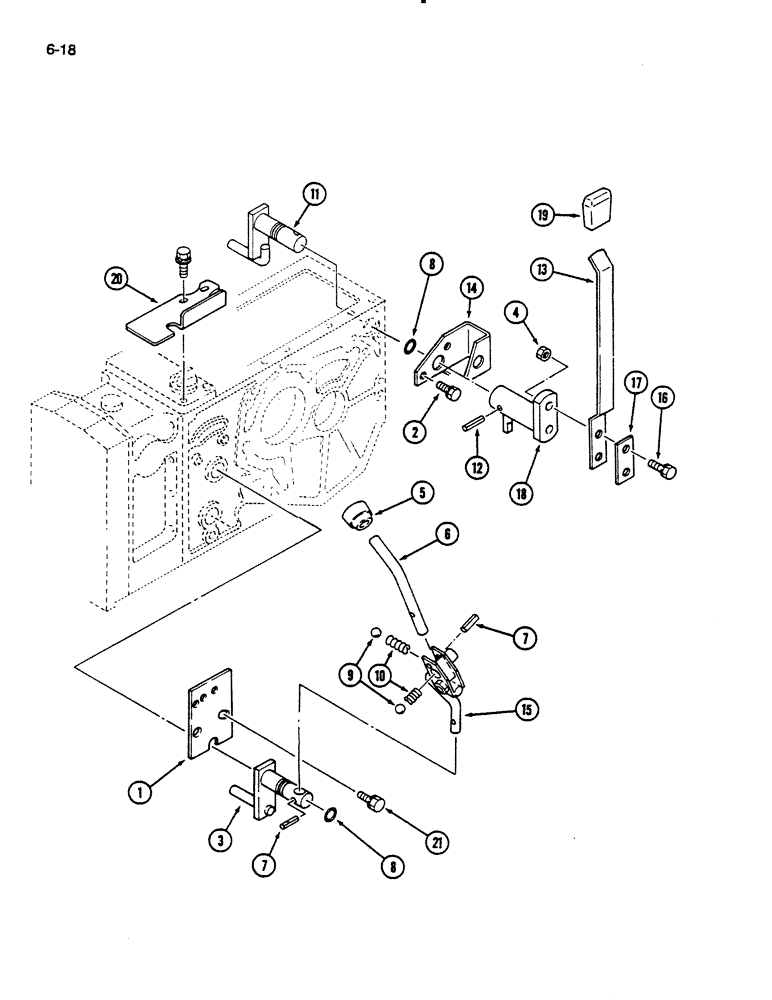

Запчасти Case IH 235 (6-18) - RANGE SHIFT LINKAGE, PTO SHIFT LINKAGE, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1265371C1

LARGE PLATE

PLATE - range shift lever

1шт.

2

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

3

1265372C1

LEVER

- range shift linkage

1шт.

4

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

1шт.

5

1265380C1

KNOB

- range shift lever

1шт.

6

1265373C1

LEVER

- range shift

1шт.

7

30320R1

PIN,M5 x 33, Coiled

- coiled spring, 5 x 32 mm

2шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

2шт.

9

17011R1

BALL

- 11/32 inch diameter

2шт.

10

1273456C1

VALVE SPRING

SPRING - shift lever

2шт.

11

99325C1

LEVER

- shift, power takeoff linkage

1шт.

12

591184R1

PIN,3/16" x 1 1/4", Coiled

- slotted spring, 5 x 32 mm

1шт.

13

1962648C1

LEVER

- power takeoff

1шт.

14

1265376C1

BRACKET

- switch

1шт.

15

1273766C1

BRACKET

- engine start switch

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

17

1265379C1

PLATE ASSY.

PLATE - lever mounting

1шт.

18

1265378C2

ARM

- power takeoff linkage

1шт.

19

99326C1

KNOB

- power takeoff lever

1шт.

20

1265377C1

GUIDE

BRACKET - range indicator

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

21

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.
