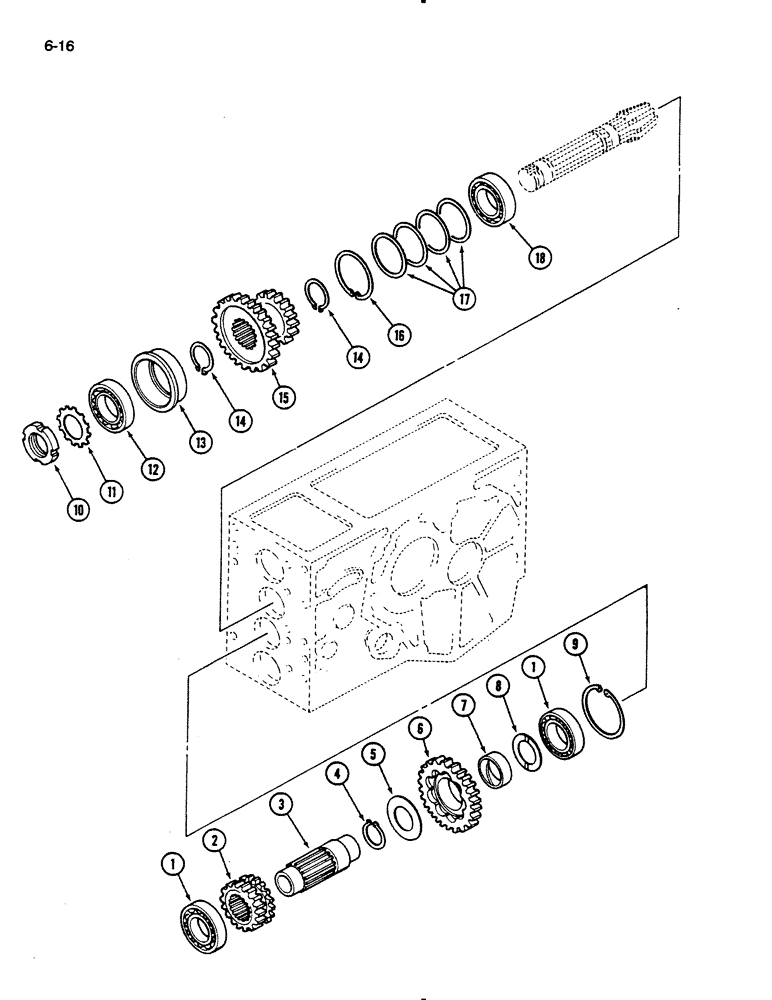

Запчасти Case IH 235 (6-16) - RANGE GEARS, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

2

1273725C1

GEAR WHEEL

GEAR - 18 tooth

1шт.

3

1273726C1

SHAFT HOUSING

COUNTERSHAFT - range gear

1шт.

4

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

1шт.

5

1962635C1

WASHER

- flat

1шт.

6

1273727C1

GEAR WHEEL

GEAR - 29 tooth

1шт.

7

1963255C1

BUSHING

- gear (Replaces 1280999C1)

1шт.

ref #7 (P/N 1280999C1) - This is an oil screen. The description should have read (Replaces 1223728C1)157

1шт.

8

1273729C3

WASHER

- grooved, 42 mm OD

1шт.

9

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

10

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT - bearing lock, M25 x 1.5

1шт.

11

31101R1

LOCK WASHER

- lock, 25 mm

1шт.

12

1273175C91

TAPERED BEARING

ASSEMBLY - roller, taper

1шт.

13

1269456C1

WASHER

HOLDER - bearing

1шт.

14

933074R1

SNAP RING,M28, Ext

RING - retaining, external, 26 mm ID

2шт.

15

1273730C1

GEAR WHEEL

GEAR - 20 and 31 tooth

1шт.

16

1273565C1

RING

- retaining

1шт.

17

1273570C1

SHIM

KIT - drive pinion

1шт.

18

1273567C91

TAPERED BEARING

BEARING ASSEMBLY - roller, taper

1шт.
