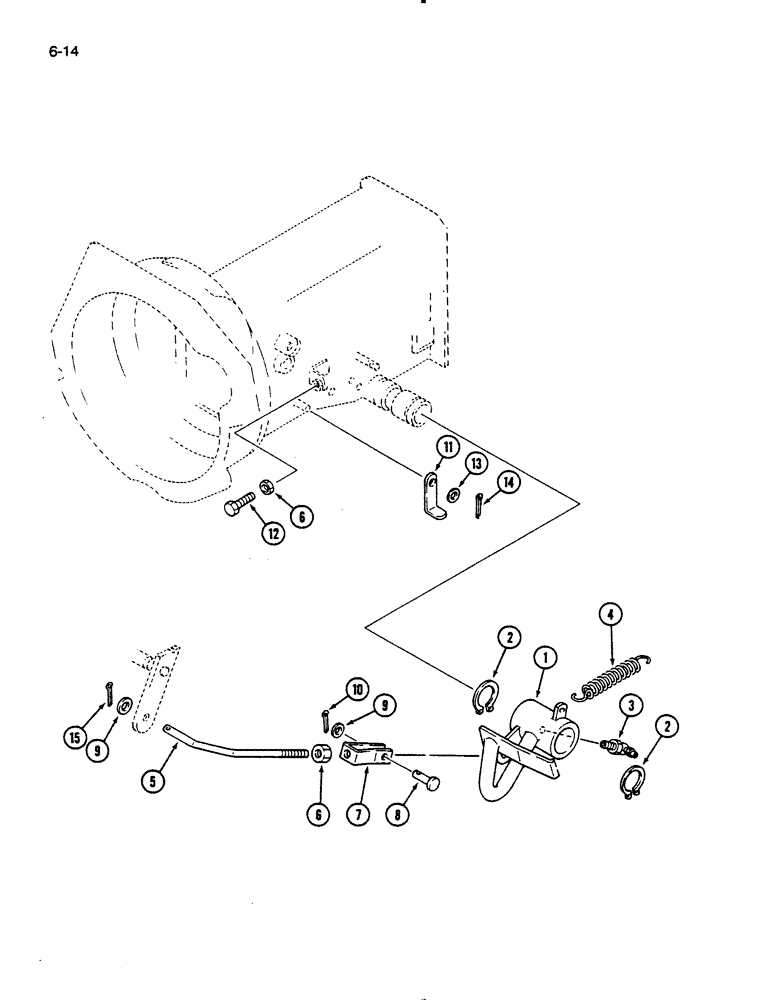

Запчасти Case IH 235 (6-14) - INCHING PEDAL (06) - POWER TRAIN

1

1269801C2

PEDAL

- inching

1шт.

2

933804R1

SNAP RING,M38, Ext

RING - retaining, external, 35 mm ID

2шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

4

1269807C1

VALVE SPRING

SPRING - inching pedal

1шт.

5

1269802C1

ROD

- linkage

1шт.

6

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.

7

1275424C1

YOKE

- linkage

1шт.

8

30569R1

CLEVIS PIN,M8 x 25

PIN - clevis, 8 x 25 mm

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

10

932952R1

COTTER PIN,M2 x 20

PIN - cotter, 2 x 20 mm (Replaces 632-580)

1шт.

11

1275127C1

SUPPORT ASSY.

BRACKET - support

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

14

934788R1

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm (Replaces 632-578)

1шт.

15

1014976C1

PIN

- cotter, 3 x 20 mm

1шт.
