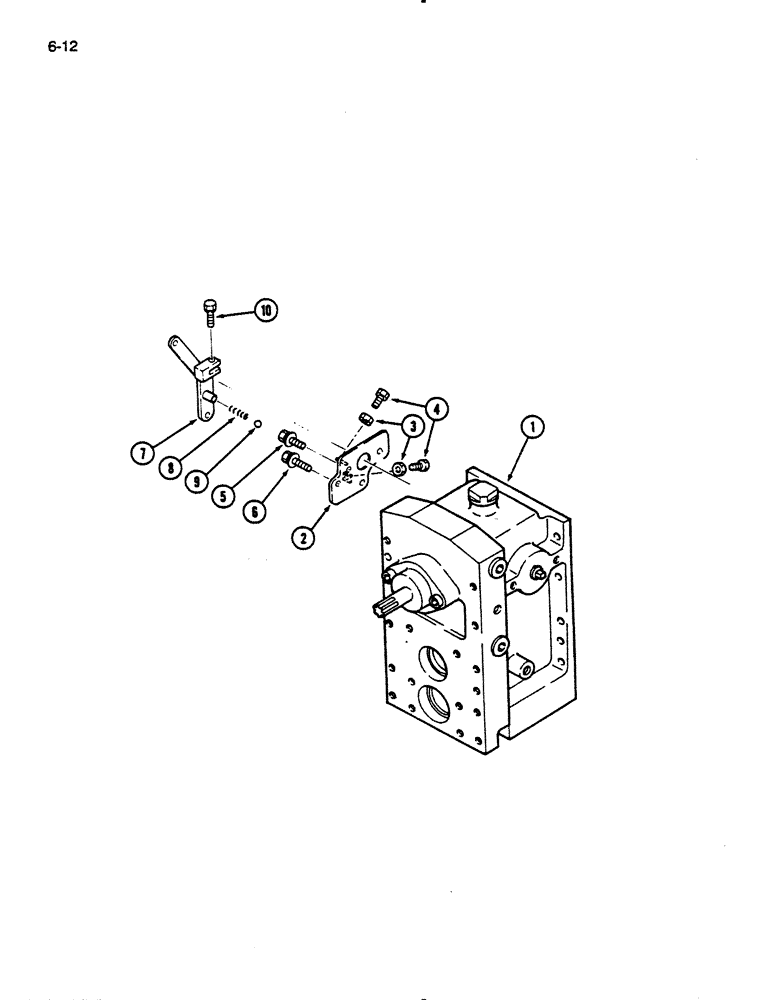

Запчасти Case IH 235 (6-12) - LINKAGE, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - hydrostatic, See Figure 6-24

1шт.

2

1962672C1

NOZZLE HOLDER

BRACKET - shift arm

1шт.

3

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

2шт.

4

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

6

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 15 mm

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

7

1962673C1

ARM

- shift

1шт.

8

1273456C1

VALVE SPRING

SPRING - shift arm (Replaces 1962674C1)

1шт.

9

17011R1

BALL

- 11/32 inch diameter

1шт.

10

30003R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, M8 x 25 mm (Replaces 614-8025)

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm (Replaces 892-11008)

1шт.
