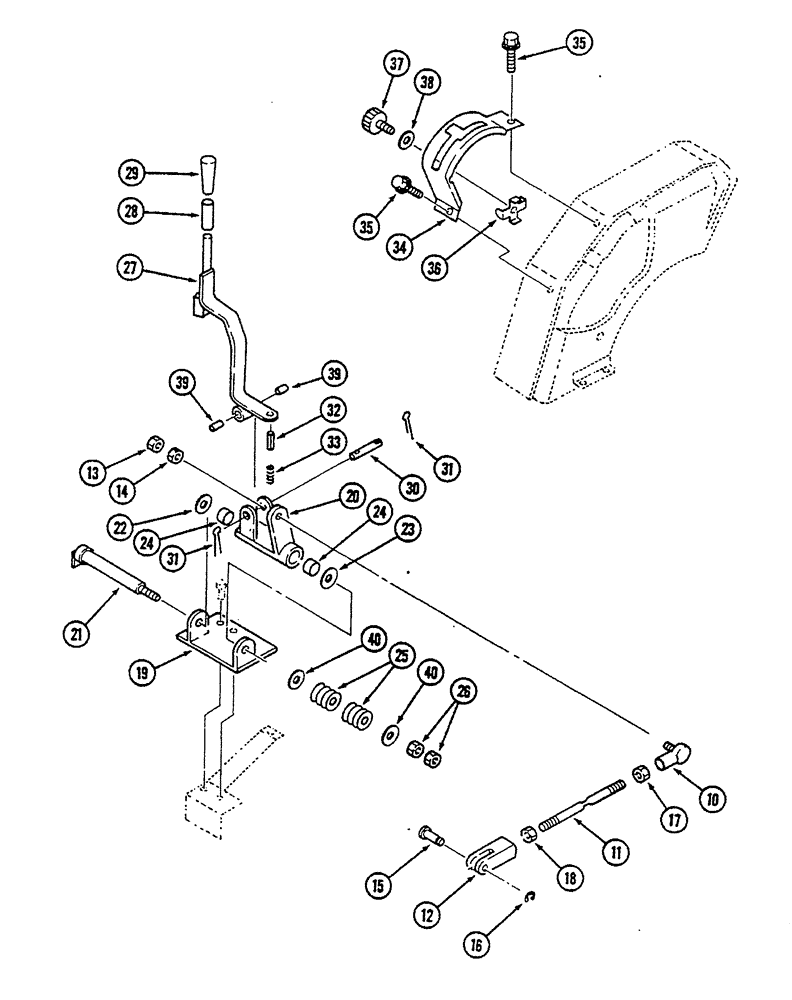

Запчасти Case IH 235 (6-10) - CONTROL LEVER, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

10

1962675C1

BALL JOINT

JOINT - ball

1шт.

11

1962676C1

ROD

- shift arm

1шт.

12

1962677C1

JOINT TURNING

YOKE - shift arm

1шт.

13

30674R1

CROWN NUT,Crown, M8, Cl6

- hex crown, M8

1шт.

14

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

1шт.

15

1962678C1

AXLE PIN

PIN - clevis

1шт.

16

1962690C1

CIRCLIP,M7

RING - retaining

1шт.

17

525-5117

NUT,M10 x 1.25, Cl 10, LH

- hex, M10, left hand thread

1шт.

18

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

19

1962679C1

BRACKET

- shaft

1шт.

20

1962680C1

BRACKET

- lever

1шт.

21

1962681C1

SHAFT HOUSING

SHAFT - pivot

1шт.

22

895-15012

WASHER,M12 x 28 x 2.5

- flat, 17/32 x 15/16 x 3/32 inch

1шт.

23

1282510C1

WASHER

- plastic

1шт.

24

1282520C1

BUSHING

- pivot shaft

2шт.

25

1275095C1

SPRING WASHER

WASHER - spring

8шт.

26

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

2шт.

27

1962682C1

LEVER

- control

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE - vinyl, 15 ID x 18 OD x 70 mm long (Procure locally)

1шт.

29

1962980C1

GRIP

KNOB - control lever (Replaces 1269854C1)

1шт.

30

1962683C1

AXLE PIN

PIN - control lever (Order 1963614C1)

1шт.

1963614C1

BOLT (SPREADER),M12 - 1.25 x 70mm

BOLT - hex special, M12 x 1.25 x 70 mm

1шт.

31

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

2шт.

31

934793R1

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm

2шт.

32

31121R1

LOCK PIN,M6 x 26, Slotted

PIN - slotted spring, 6 x 26 mm

1шт.

33

1963615C1

VALVE SPRING

SPRING - control lever (Replaces 1962692C1)

1шт.

34

1962684C1

GUIDE

PLATE - shift position

1шт.

35

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

36

1962685C1

LEVER

STOP - control lever

1шт.

37

1282515C1

KNOB

- stop adjust

1шт.

38

1282517C1

WASHER

- adjustment knob

1шт.

39

1962691C1

BUSHING

- control lever

2шт.

40

1962688C1

WASHER

- flat

2шт.

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

2шт.
