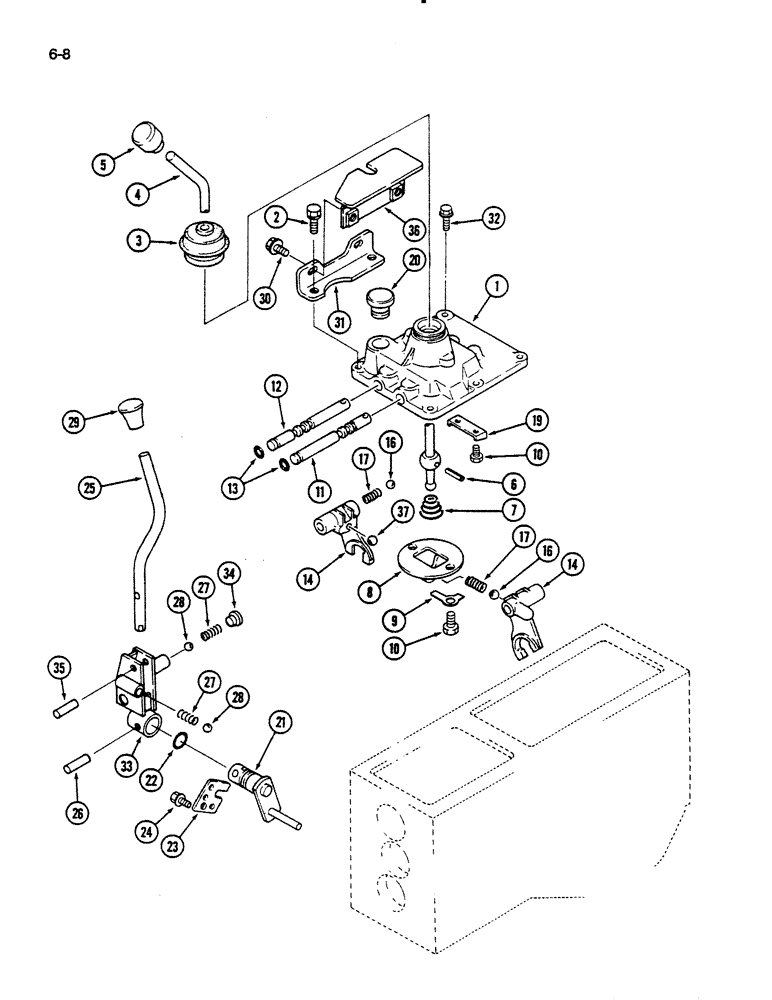

Запчасти Case IH 235 (6-08) - GEAR SHIFT LINKAGE AND MECHANISM, RANGE SHIFT LINKAGE, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

1273446C1

COVER ASSY

COVER - transmission

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

3

1273447C1

INSULATOR

COVER - gear shift lever

1шт.

4

1273448C1

HANDLE

LEVER - gear shift

1шт.

5

1273483C1

KNOB

- gear shift lever

1шт.

6

31119R1

LOCK PIN,M5 x 36, Slotted

PIN - slotted spring, 5 x 36 mm

1шт.

7

1273450C1

VALVE SPRING

SPRING - gearshift lever

1шт.

8

1273451C1

BRACKET

- spring retaining

1шт.

9

1273452C1

WASHER

- special

2шт.

10

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

11

1273453C1

SHAFT HOUSING

RAIL - shifter, left

1шт.

12

1273454C1

SHAFT HOUSING

RAIL - shifter, right

1шт.

13

1269869C1

O-RING

O-RING - 10 mm ID

2шт.

14

1273455C1

FORK TEDDER

FORK - shift

2шт.

16

17011R1

BALL

- 11/32 inch diameter

2шт.

17

1273456C1

VALVE SPRING

SPRING - shift fork

2шт.

19

1273457C1

SUPPORT ASSY.

STRAP - locking

1шт.

20

1273458C1

PLUG

- cover

1шт.

21

1273459C1

LEVER

- range shift linkage

1шт.

22

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

23

1273460C1

SUPPORT ASSY.

PLATE - range shift lever

1шт.

24

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

25

1282581C1

HANDLE

LEVER - range shift

1шт.

26

31163R1

PIN,M5 x 40, Coiled

- coiled spring, heavy, 5 x 40 mm

1шт.

27

1273456C1

VALVE SPRING

SPRING - shift lever

2шт.

28

17011R1

BALL

- 11/32 inch diameter

2шт.

29

1273497C1

KNOB

- range shift lever

1шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

1282582C1

PLATE ASSY.

BRACKET - mounting

1шт.

32

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

33

1282583C1

BRACKET

- neutral start switch

1шт.

34

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, automotive, 1/4-18 pipe

1шт.

35

30320R1

PIN,M5 x 33, Coiled

- coiled spring, 5 x 32 mm

1шт.

36

1282584C1

PLATE ASSY.

BRACKET - range indicator

1шт.

37

17014R1

BALL

- 7/16 inch diameter

1шт.
