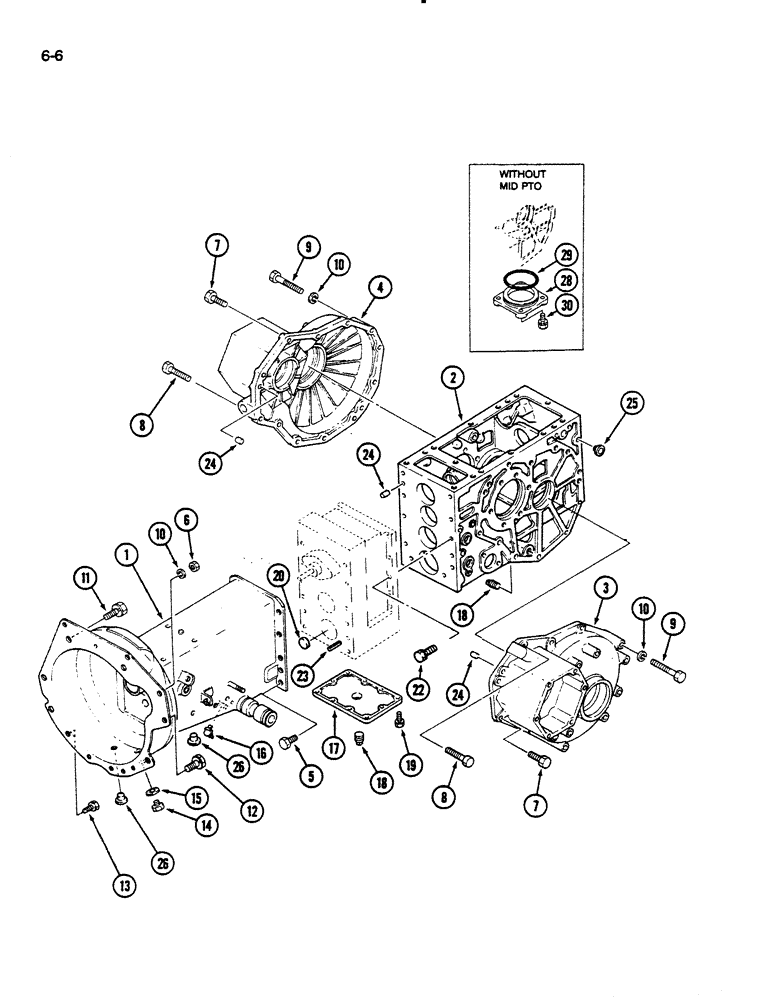

Запчасти Case IH 235 (6-06) - HOUSINGS, CLUTCH, DIFFERENTIAL AND REAR AXLE, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1282587C1

HOUSING

- clutch

1шт.

2

99324C1

CASE

HOUSING - differential

1шт.

3

1269444C1

CASE

HOUSING - rear axle, left

1шт.

4

1269443C1

CASE

HOUSING - rear axle, right

1шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

892-11010

LOCK WASHER,M10

10шт.

6

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

7

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 35 mm

12шт.

8

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

- hex, M10 x 55 mm

2шт.

9

514-724

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

- hex, M10 x 70 mm

2шт.

10

892-11010

LOCK WASHER,M10

3шт.

11

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

12

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

1269439C1

SEALING WASHER

SEAL - washer

1шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, short, 1/8 PT

1шт.

17

1273717C1

COVER ASSY

COVER - transmission, bottom

1шт.

18

444699

PLUG,Hex Soc, 3/8"-18

- slotted, headless, 3/8 PT

3шт.

19

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm

10шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

10шт.

20

1269521C1

PLUG

- (2 wheel drive)

1шт.

22

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

10шт.

23

30721R1

DOWEL,M10 x 35

PIN - dowel, hardened, 10 x 35 mm

2шт.

24

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 x 18 mm

6шт.

25

NSS

NOT SOLD SEPARAT

CAP - rubber

6шт.

26

1282586C1

CYLINDER END CAP

CAP - housing (Replaces 1265383C1)

2шт.

28

1962634C1

COVER ASSY

COVER - housing (Without mid PTO)

1шт.

29

1962507C1

O-RING

- housing (Without mid PTO)

1шт.

30

1269781C1

BOLT,Hex, M12 x 35mm

BOLT - hex, M12 x 35 mm (Without mid PTO)

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.
