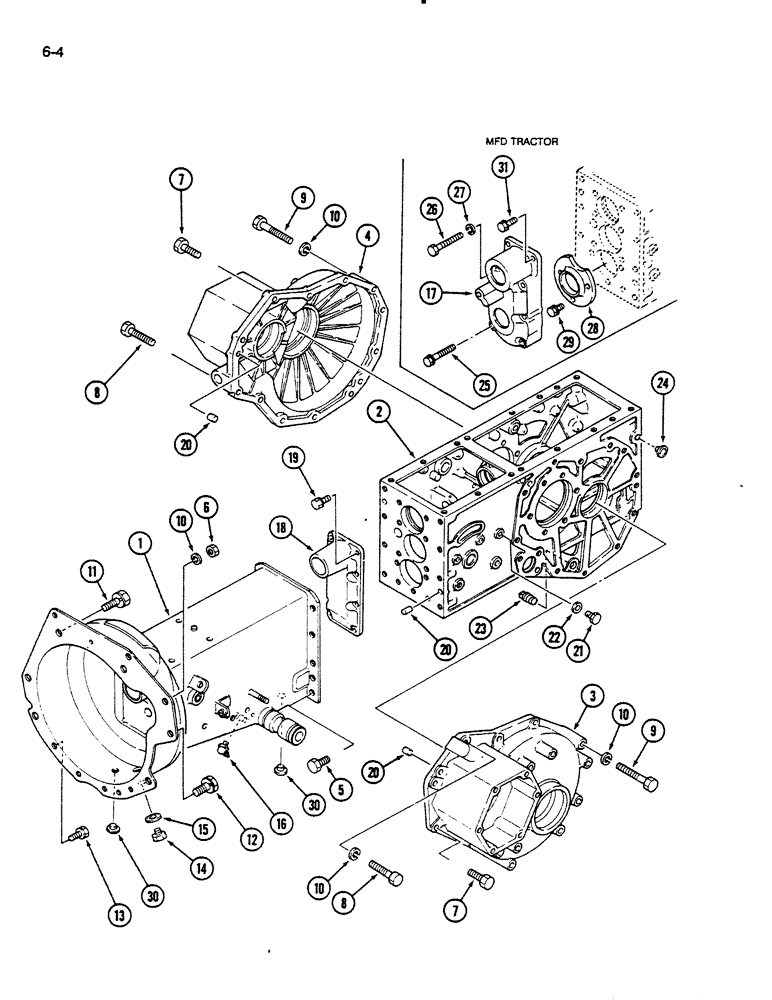

Запчасти Case IH 235 (6-04) - HOUSINGS, CLUTCH, TRANSMISSION, DIFFERENTIAL AND REAR AXLE, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

1273687C2

HOUSING

- clutch (2 wheel drive)

1шт.

1

1273688C2

HOUSING

- clutch (MFD)

1шт.

2

1269445C1

CASE

HOUSING - transmission and differential

1шт.

3

1269444C1

CASE

HOUSING - rear axle, left

1шт.

4

1269443C1

CASE

HOUSING - rear axle, right

1шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

892-11010

LOCK WASHER,M10

8шт.

6

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

7

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 35 mm

12шт.

892-11010

LOCK WASHER,M10

12шт.

8

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

- hex, M10 x 55 mm

2шт.

9

514-724

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

- hex, M10 x 70 mm

10шт.

10

892-11010

LOCK WASHER,M10

33шт.

11

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

12

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

1269439C1

SEALING WASHER

SEAL - washer

1шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, short, 1/8 PT

1шт.

17

1269441C1

HOUSING

- bearing (MFD)

1шт.

18

1269442C1

HOUSING

- bearing (2 wheel drive)

1шт.

19

828-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

(2 wheel drive) Hex, M8 x 40, 10.9

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (2WD) M8

8шт.

20

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 x 20 mm

6шт.

21

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT - plug

1шт.

22

1275284C1

SEALING WASHER

SEAL - washer

1шт.

23

444699

PLUG,Hex Soc, 3/8"-18

- slotted, headless, 3/8 PT

2шт.

24

1271889C1

CYLINDER END CAP

CAP - rubber

6шт.

25

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

(MFD) Hex, M8 x 50, 8.8

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (MFD) M8

5шт.

26

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

(MFD) Hex, M8 x 75, 8.8

1шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (MFD) M8

1шт.

28

1269440C1

CAGE

- bearing (MFD)

1шт.

29

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

(MFD) Hex, M8 x 20, 8.8

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (MFD) M8

3шт.

30

1282586C1

CYLINDER END CAP

CAP - housing

2шт.

31

30003R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, M8 x 25 mm (MFD) (Replaces 614-8025)

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm (MFD) (Replaces 892-11008)

2шт.
