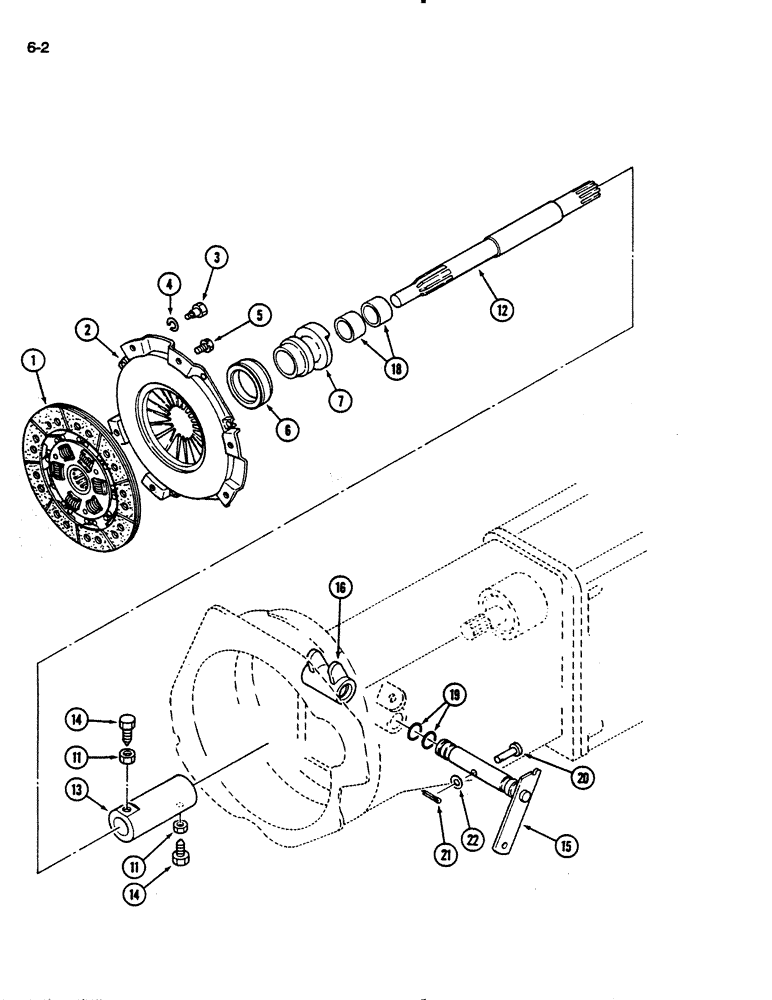

Запчасти Case IH 235 (6-02) - ENGINE CLUTCH (06) - POWER TRAIN

1

1273244C1

CLUTCH ASSEMBLY

- disc

1шт.

1346876C1R

REMAN-CLUTCH DISC

235, Reman Clutch Assembly For New P/N 1273244C1, N.A. Only

1шт.

1346876C1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

2

1273243C1

COVER ASSY

COVER ASSEMBLY - clutch

1шт.

1273243C1R

REMAN-CLUTCH PLATE

235, N.A. Only

1шт.

2

1273243C1C

CORE-CLUTCH PLATE

Return Number, For N.A. Only

1шт.

3

1273240C1

BOLT,Hex, M8 x 1.25 x 22mm

BOLT - clutch cover

2шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

6

1273237C91

BEARING,40mm ID x 70mm OD x 20mm W

ASSEMBLY - clutch release

1шт.

7

1273241C2

HUB CAP

HUB - bearing release

1шт.

11

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.

12

1273242C2

SHAFT HOUSING

MAINSHAFT - clutch (Mechanical transmission)

1шт.

12

1273723C2

SHAFT

MAINSHAFT - clutch (Hydrostatic transmission)

1шт.

13

1273246C2

COUPLING

- mainshaft (Mechanical transmission)

1шт.

13

1273724C2

COUPLING

- mainshaft (Hydrostatic transmission)

1шт.

14

1273239C2

BOLT,Hex, M8 x 1.25 x 22mm

BOLT - coupling

2шт.

15

1273245C1

SHAFT HOUSING

SHAFT - clutch release

1шт.

16

1273238C1

FORK TEDDER

FORK - clutch release

1шт.

18

1273252C1

BUSHING

- clutch mainshaft

2шт.

19

1269891C1

O-RING

O-RING - clutch release shaft

2шт.

20

1963627C1

AXLE PIN

PIN - clevis (Replaces 1273249C1)

1шт.

21

932951R1

COTTER PIN,M1.6 x 12

PIN - cotter, 2 x 12 mm (Replaces 632-532)

1шт.

21

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
