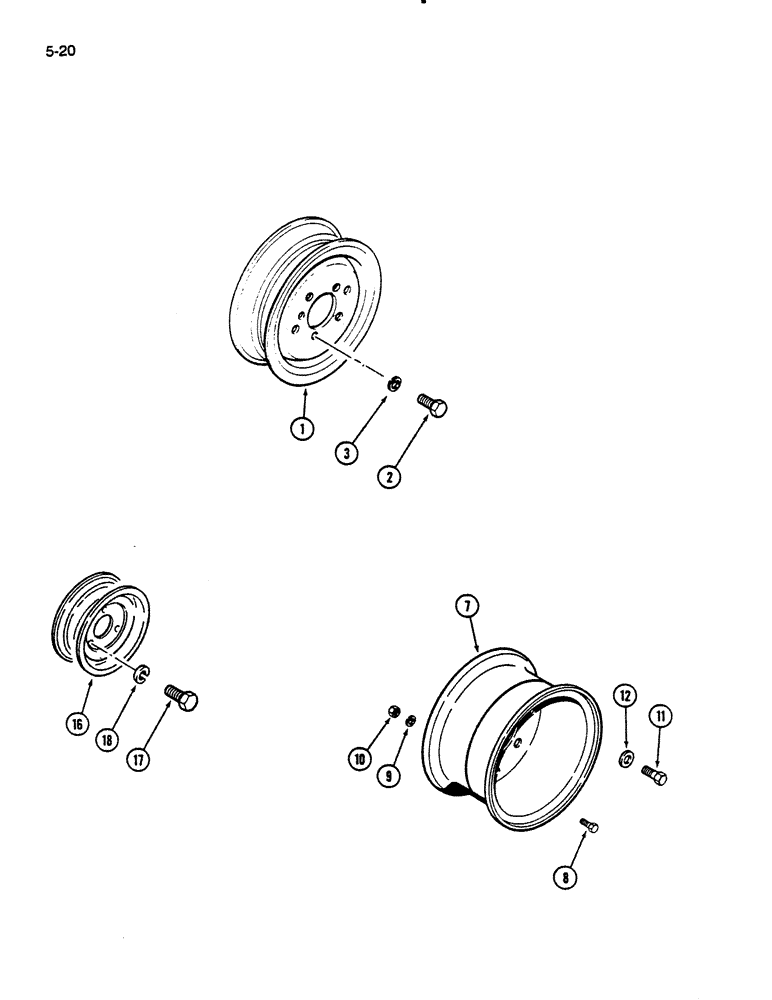

Запчасти Case IH 235 (5-20) - WHEELS, FRONT ONE PIECE TYPE, MFD (05) - STEERING

1

99347C1

RIM

WHEEL - front, 4 JA x 12 WDC (For 5.00-12 R1 tire)

2шт.

1

99348C1

RIM

WHEEL - front, 5 JA x 12 (For 6-13 R1 tire)

2шт.

1

99349C1

RIM

WHEEL - front, 5 JA x 14 (For 6-14 FD turf tire)

2шт.

2

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

Wheel mounting Hex, M12 x 1.25 x 25, 8.8, Full Thd

10шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

7

1981387C1

RIM

WHEEL - front (For 23 x 8.50-12 tire)

2шт.

8

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

12шт.

9

933965R1

LOCK WASHER,M10

12шт.

10

824-1410

NUT,M10, Cl 5

- hex, M10

12шт.

11

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

16

1961810C1

RIM

WHEEL - front, 3.00 D x 10 DC (For 5.00-10 F2 tire), 2wd

2шт.

17

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- wheel mounting, M14 x 25 mm, 2wd

8шт.

18

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm, 2wd

8шт.
