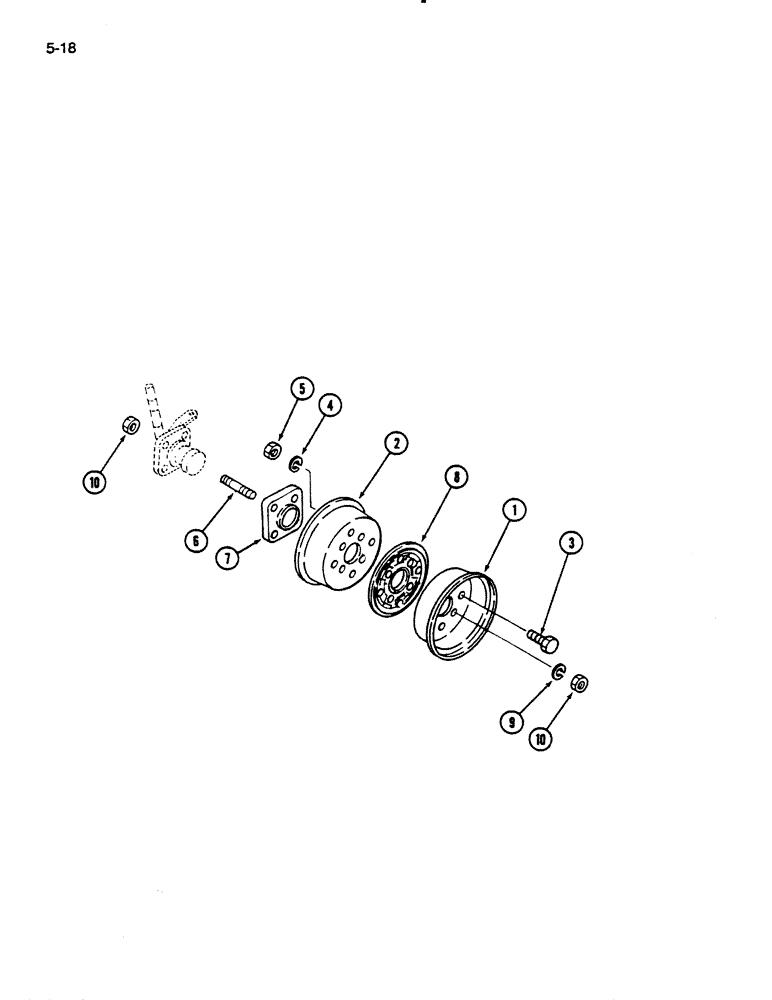

Запчасти Case IH 235 (5-18) - WHEELS, FRONT SPLIT TYPE WITH SPACERS (05) - STEERING

1

1288395C1

RIM

WHEEL - half, outer, 5.50 x 8 DT (For 18 x 7.00-8 turf tire)

2шт.

2

1288396C1

RIM

WHEEL - half, inner, 5.50 x 8 DT (For 18 x 7.00-8 turf tire)

2шт.

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

892-11010

LOCK WASHER,M10

8шт.

825-1110

NUT,M10, Cl 8

hex, 10 mm - 1.5

8шт.

3

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

8шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

5

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

8шт.

6

1288399C1

STUD,M14 x 1.5 x 60mm

- wheel mounting, 60 mm

8шт.

7

1288397C1

SPACER

- wheel

2шт.

8

1288400C1

GASKET

- wheel

2шт.

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

10

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

16шт.
