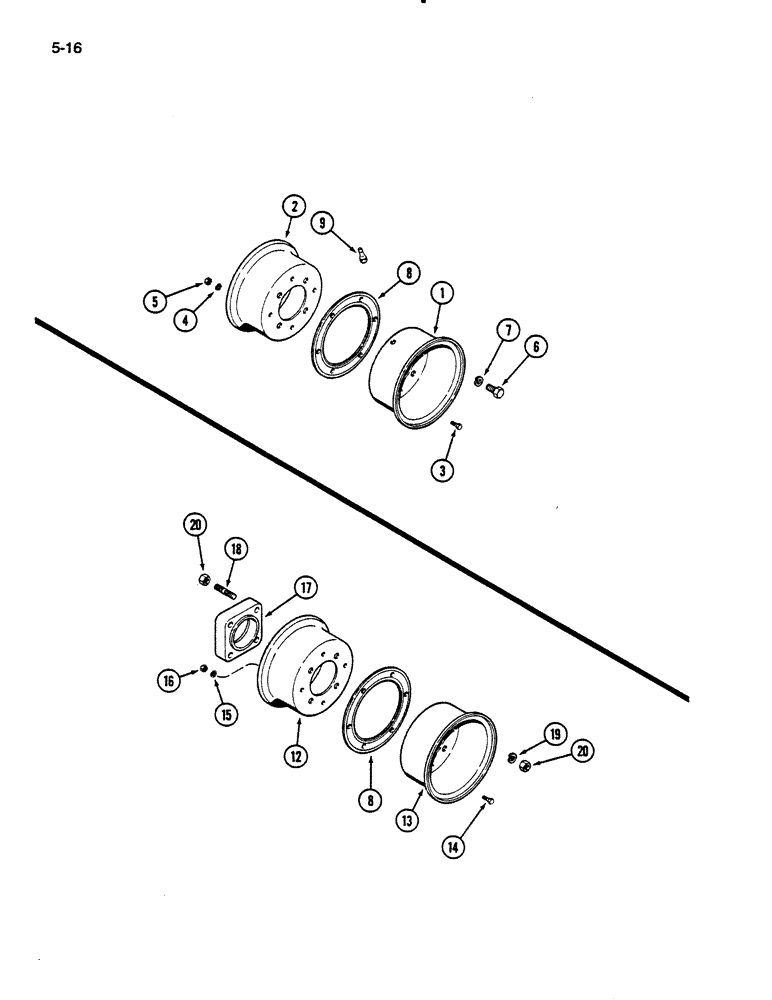

Запчасти Case IH 235 (5-16) - WHEELS, FRONT SPLIT TYPE (05) - STEERING

1

1271838C1

WHEEL (STEERING)

WHEEL - half, outer, 3.00 D-10 (For 4.50-10 F2 tire)

1шт.

1

1271842C1

RIM

WHEEL - half, outer, 6.00 I x 10 DT (For 20 x 8.00-10 R3 turf tire) (2 wheel drive)

1шт.

1

1288401C1

RIM

WHEEL - half, outer, 6.00 I x 10 DT (For 20.5 x 8.00-10 PD turf tire) (MFD)

1шт.

2

1271839C1

WHEEL (STEERING)

WHEEL - half, inner, 3.00 D-10 (For 4.50-10 F2 tire)

1шт.

2

1271843C1

WHEEL (STEERING)

WHEEL - half, inner, 6.00 I x 10 DT (For 20 x 8.00-10R3 turf tire) (2 wheel drive)

1шт.

2

1288402C1

RIM

WHEEL - half, inner, 6.00 I x 10 DT (For 20.5 x 8.00-10 PD turf tire) (MFD)

1шт.

3

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

Wheel Hex, M10 x 1.25 x 20, 8.8, Full Thd

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

525-5100

NUT,M10 x 1.25, Cl 8

- wheel, M10

1шт.

6

1273629C1

BOLT,Hex, M14 x 1.5 x 25mm

BOLT - wheel mounting

8шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

8

1282646C1

GASKET

- wheel

2шт.

9

387897R91

VALVE STEM

VALVE - wheel (Replaces 27746R1)

2шт.

12

1981374C1

WHEEL (STEERING)

WHEEL - half, inner (For 18 x 6.50-8 tire)

2шт.

13

1981375C1

WHEEL (STEERING)

WHEEL - half, outer (For 18 x 6.50-8 tire)

2шт.

14

892-11010

LOCK WASHER,M10

BOLT - hex, x 1.25 x 20 mm (Replaces 514-703) M10

12шт.

15

825-11410

NUT,M10 x 1.25, Cl 8

WASHER - lock, 10 mm (Replaces 933965R1)

12шт.

16

824-1410

NUT,M10, Cl 5

- hex, M10

12шт.

17

1288397C1

SPACER

- wheel

2шт.

18

1288399C1

STUD,M14 x 1.5 x 60mm

- wheel mounting, 60 mm

8шт.

19

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.

20

387897R91

VALVE STEM

NUT - hex, M14 x 1.50 mm (Replaces 525-5105)

16шт.
