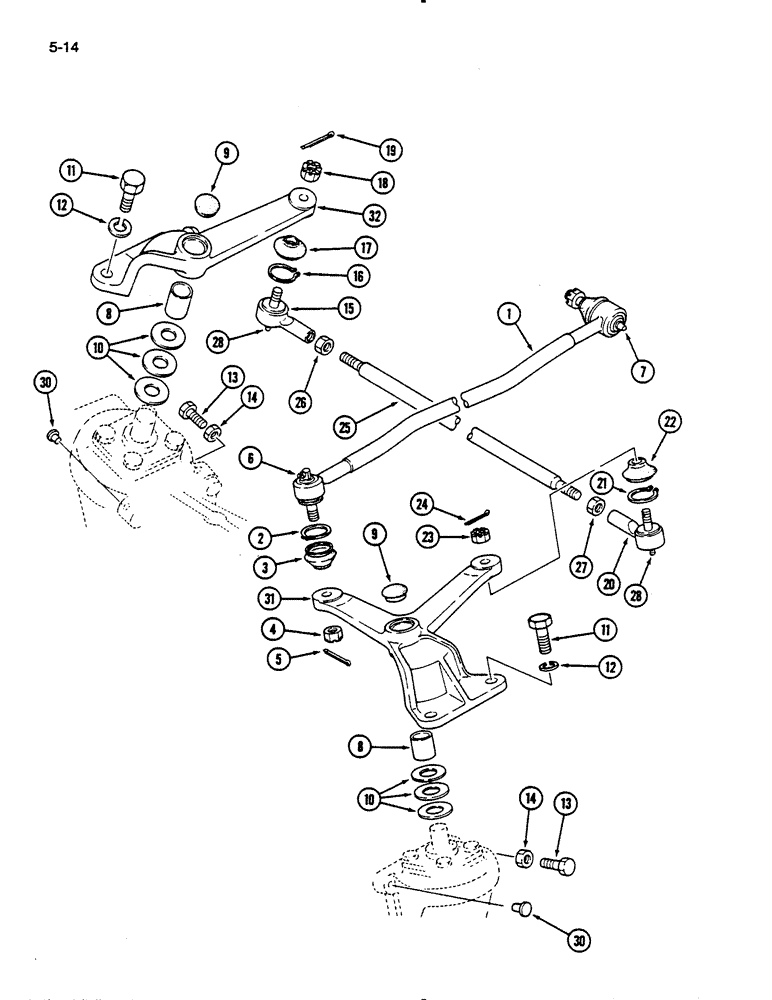

Запчасти Case IH 235 (5-14) - TIE ROD AND STEERING LINKAGE, MFD TRACTOR (05) - STEERING

1

1282595C91

ROD

ASSEMBLY - drag link, Includes: Ref. 2 - 7

1шт.

2

1273528C1

RING

- retaining

2шт.

3

1273527C1

COVER ASSY

COVER - dust

2шт.

4

1271875C1

NUT

- castle, M10

2шт.

5

934793R1

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (Replaces 632-630)

2шт.

6

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, extra short, 65 degree 1/4-18 PT

1шт.

7

1273649C1

FITTING

- grease, M6

1шт.

8

1273285C1

SPACER

BUSHING - steering arm

2шт.

9

1273537C1

PLUG

- steering arm

2шт.

10

1273542C2

SHIM

KIT - steering arm

2шт.

11

1273538C1

STEP BOLT,Hex, M12 x 1.25 x 35mm

BOLT - shoulder

4шт.

12

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

2шт.

15

1273539C91

END ASSY.

ROD END ASSEMBLY - tie, right

1шт.

16

1275164C1

RING

- retaining (Replaces 1273528C1), Includes: Ref. 17

1шт.

17

1275165C1

COVER ASSY

COVER - dust (Replaces 1273527C1)

1шт.

18

1271875C1

NUT

- castle, M10

1шт.

19

934793R1

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (Replaces 632-630)

1шт.

20

1273540C91

END ASSY.

ROD END ASSEMBLY - tie, left, Includes: Ref. 21 & 22

1шт.

21

1275164C1

RING

- retaining (Replaces 1273528C1)

1шт.

22

1275165C1

COVER ASSY

COVER - dust (Replaces 1273527C1)

1шт.

23

1271875C1

NUT

- castle, M10

1шт.

24

934793R1

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (Replaces 632-630)

1шт.

25

1273541C1

TURNBUCKLE

ROD - tie

1шт.

26

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12

1шт.

27

1269785C1

NUT

- hex, M12, left hand thread

1шт.

28

1273649C1

FITTING

- grease, M6

2шт.

30

NSS

NOT SOLD SEPARAT

PLUG - steering arm

2шт.

31

1273534C1

ARM

- knuckle

1шт.

32

1273535C1

ARM

- tie rod

1шт.
