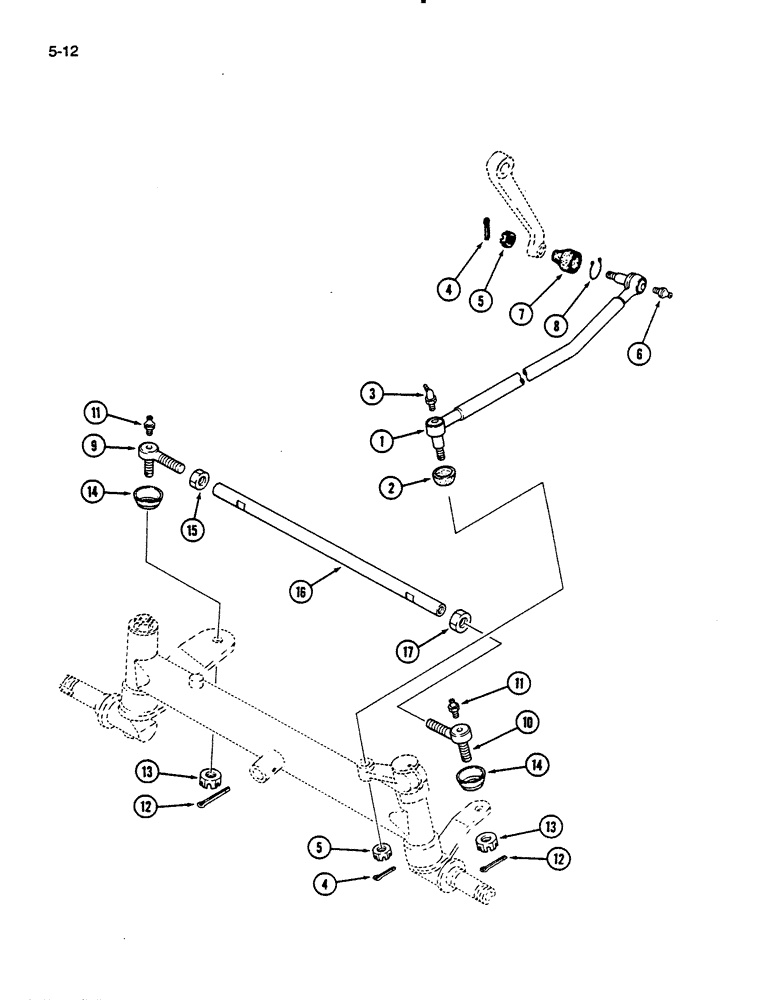

Запчасти Case IH 235 (5-12) - TIE ROD AND STEERING LINKAGE (05) - STEERING

1

1282594C91

ROD

ASSEMBLY - link, Includes: Ref. 2 - 8

1шт.

2

1273526C1

COVER ASSY

COVER - dust

1шт.

3

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, extra short, 65 degree, 1/4-18 PT

1шт.

4

30259R1

COTTER PIN,M2.5 x 20

PIN - cotter, 3 x 30 mm (Replaces 632-604)

2шт.

5

1271875C1

NUT

- castle, M10

2шт.

6

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

1шт.

7

1275165C1

COVER ASSY

COVER - dust (Replaces 1273527C1)

1шт.

8

1273528C1

RING

- retaining

1шт.

9

1273529C91

END FITTING

TIE ROD END ASSEMBLY - right, Includes Ref. 11 - 14

1шт.

10

1273530C91

END ASSY.

TIE ROD END ASSEMBLY - left, Includes: Ref. 11 - 14

1шт.

11

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, extra short, straight, 1/4-18 PT (Replaces 219-213)

2шт.

12

632-604

PIN - cotter, 3 x 30 mm

2шт.

13

30259R1

COTTER PIN,M2.5 x 20

NUT - castle, M10 (replaces 1271875C1)

2шт.

14

1273526C1

COVER ASSY

COVER - dust

2шт.

15

1269794C1

NUT

- jam, M12

1шт.

16

1273531C1

TURNBUCKLE

- tie rod

1шт.

17

1269795C1

NUT

- jam, M12, left hand thread

1шт.
