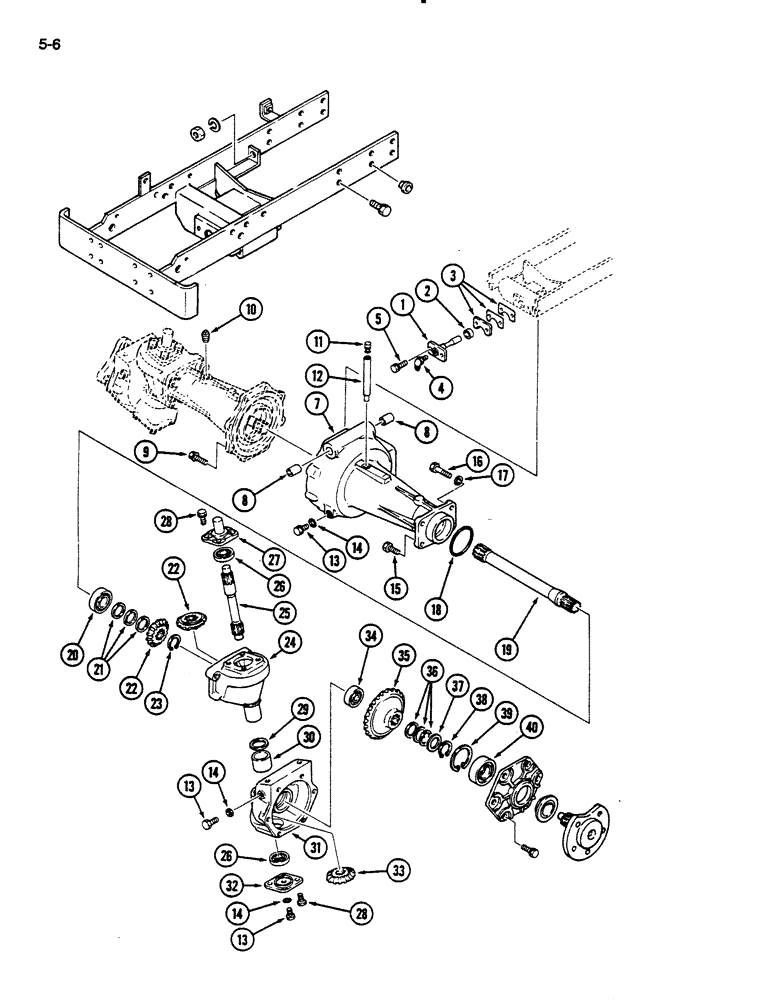

Запчасти Case IH 235 (5-06) - FRONT AXLE HOUSING, FRONT AXLE SHAFT AND GEARS, MFD TRACTOR (05) - STEERING

1

1273280C1

SHAFT HOUSING

SHAFT - axle pivot

1шт.

2

1273281C1

SPACER

- pivot shaft

1шт.

3

1273282C1

SHIM

KIT - pivot shaft

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, short, 65 degree, 1/8-27 PT

1шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

7

1273286C1

HOUSING

- front axle, right

1шт.

7

1273283C91

HOUSING

ASSEMBLY - front axle, left (Shown), Includes: Ref. 8

1шт.

8

1273285C1

SPACER

BUSHING - axle pivot

2шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

10

444699

PLUG,Hex Soc, 3/8"-18

- slotted, headless, 3/8 PT

1шт.

11

1273287C1

PLUG

- vent

1шт.

12

1273288C1

VENTILATION PIPE,13 mm Diameter, 110 mm Length

TUBE - vent plug

1шт.

13

1269630C1

BOLT,M8 x 1.25 x 12mm

PLUG - drain

5шт.

14

1275284C1

SEALING WASHER

GASKET - drain plug

5шт.

15

1273289C1

BOLT,Hex, M10 x 1.25 x 30mm

BOLT - shoulder

4шт.

16

1273290C1

BOLT,Hex, M10 x 1.25 x 30mm, Full Thd

BOLT - hex, full thread

4шт.

17

892-11010

LOCK WASHER,M10

4шт.

18

1269886C1

O-RING

O-RING - 65 mm ID

2шт.

19

1273291C2

SHAFT HOUSING

SHAFT - axle

2шт.

20

1273292C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

2шт.

21

1273293C1

SHIM

KIT - axle shaft

1шт.

22

1288024C1

GEAR WHEEL

GEAR - pinion, 14 tooth

4шт.

23

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

24

1273295C1

CASE

HOUSING - king pin

2шт.

25

1273296C1

SHAFT HOUSING

SHAFT - king pin

2шт.

26

1273192C91

TAPERED BEARING

ASSEMBLY - taper roller

4шт.

27

1273297C1

NOZZLE HOLDER

HOLDER - bearing, upper

2шт.

28

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

16шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

29

1273298C1

OIL SEAL

SEAL - oil

2шт.

30

1273299C1

SPACER

BUSHING - housing, 30 mm long

2шт.

30

1981367C1

SPACER

BUSHING - housing, 50 mm long

2шт.

31

1273160C1

CASE

HOUSING - final drive

2шт.

32

1273161C1

COVER ASSY

COVER - housing, lower

2шт.

33

1273162C1

GEAR WHEEL

GEAR - pinion, 15 tooth

2шт.

34

1273163C91

BEARING, BALL,20 mm ID x 47 mm OD x 14 mm

BEARING ASSEMBLY - ball

2шт.

35

1273164C1

GEAR WHEEL

GEAR - bevel, 29 tooth

2шт.

36

1273165C1

SHIM

KIT - bevel gear

1шт.

37

1273166C1

WASHER

- flat

2шт.

38

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

2шт.

39

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

40

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball

2шт.
