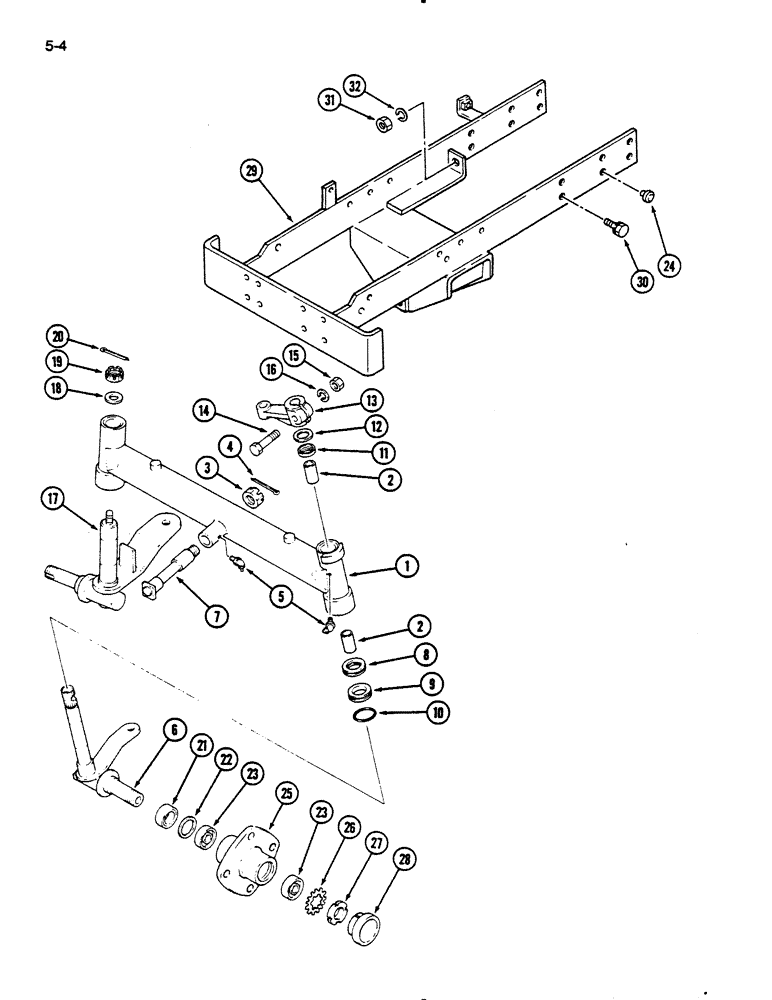

Запчасти Case IH 235 (5-04) - FRONT AXLE, NON-ADJUSTABLE (05) - STEERING

1

1273268C91

CENTER AXLE

AXLE ASSEMBLY - front, Includes: Ref. 2

1шт.

2

1273270C1

SPACER

BUSHING - front axle

4шт.

3

1271878C1

NUT

- castle, M20

1шт.

4

632-657

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

1шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, short, 65 degree, 1/8-27 PT

3шт.

6

1271879C2

KNUCKLE JOINT

KNUCKLE - steering, left

1шт.

7

1273271C1

SHAFT HOUSING

SHAFT - axle pivot

1шт.

8

1271868C91

BALL BEARING,25 mm ID x 42 mm OD x 11 mm

ASSEMBLY - thrust ball

2шт.

9

1271880C1

SPACER

- bushing

2шт.

10

1269879C1

O-RING

O-RING - 18 mm ID

2шт.

11

1271882C1

OIL SEAL

SEAL - oil

2шт.

12

1275071C1

WASHER

- flat

1шт.

13

1271884C1

ARM

- steering knuckle

1шт.

14

514-720

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

15

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

1271881C2

KNUCKLE JOINT

KNUCKLE - steering, right

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

19

1271876C1

NUT

- castle, M12

1шт.

20

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

21

1271885C1

OIL SEAL

SEAL - oil

2шт.

22

1271870C1

SHIM

- steering knuckle

2шт.

23

1271855C91

BEARING, BALL

BEARING ASSEMBLY - ball

4шт.

24

1271889C1

CYLINDER END CAP

CAP - rubber

4шт.

25

1271886C1

HUB CAP

HUB - wheel, front

2шт.

26

31100R1

LOCK WASHER

- bearing lock, M20

2шт.

27

31098R1

LOCK NUT,M20 x 1, Bearing

NUT - bearing lock, M20

2шт.

28

1271887C1

CYLINDER END CAP

CAP - hub

2шт.

29

99133C1

FRAME

- front

1шт.

30

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

8шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

31

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

2шт.

32

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.
