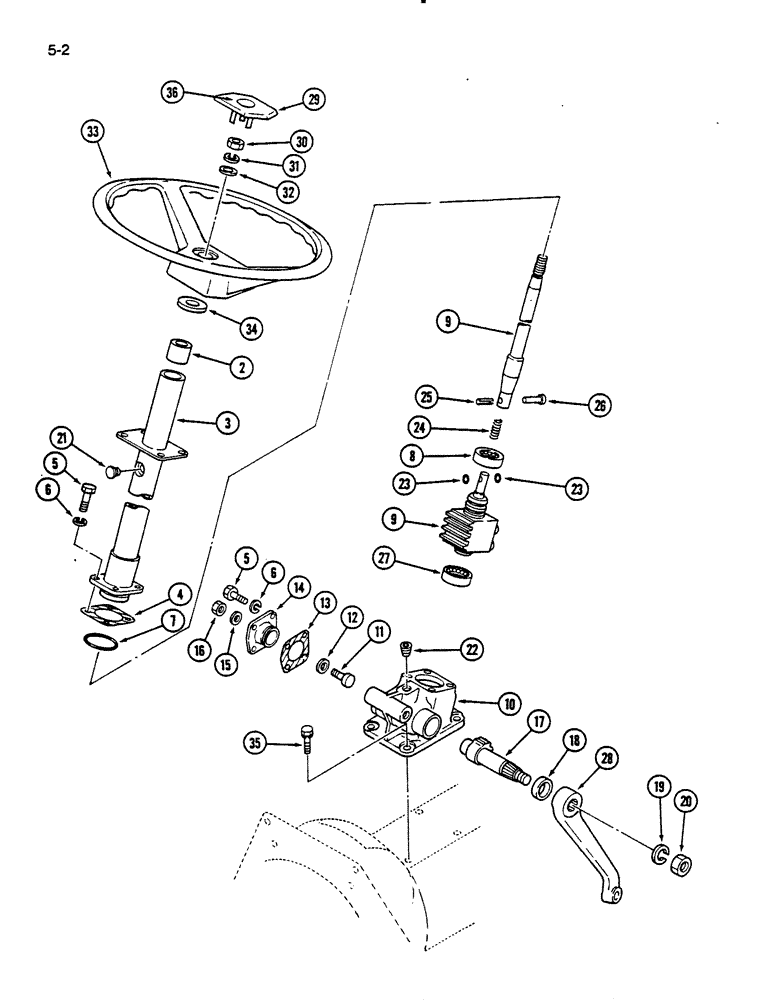

Запчасти Case IH 235 (5-02) - STEERING GEAR AND COLUMN, MANUAL STEERING (05) - STEERING

99327C1

BOX, STEERING

GEAR BOX ASSEMBLY - steering (Order components), Includes: Ref. 2 - 27

1шт.

2

1273665C1

BUSHING

- column

1шт.

3

1962577C1

SHAFT HOUSING

SHAFT - steering column

1шт.

4

NSS

NOT SOLD SEPARAT

SHIM KIT - column

1шт.

Part of Seal Kit, P/N 1275479C2

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

7

NSS

NOT SOLD SEPARAT

O-RING - column

1шт.

Part of Seal Kit, P/N 1275479C2

1шт.

8

1273670C91

BALL BEARING,25mm ID x 38mm OD x 11mm W

- steering shaft

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - steering

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

10

1273675C1

HOUSING

- gear box

1шт.

11

1273676C1

ADJUSTMENT SCREW,M10 x 1.25 x 37mm

SCREW - adjusting

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - adjusting

1шт.

Part of Seal Kit, P/N 1275479C2

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - side order

1шт.

Part of Seal Kit, P/N 1275479C2

1шт.

14

1273679C1

COVER

- side

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - seal

1шт.

Part of Seal Kit, P/N 1275479C2

1шт.

16

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.25

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - steering sector

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

18

1273682C1

OIL SEAL

SEAL - oil

1шт.

19

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

1шт.

20

525-5116

NUT,M20 x 1.5, Cl 8

- hex, M20 x 1.5

1шт.

21

1273683C1

BREATHER

- steering column

1шт.

22

444693

PLUG,Hex Soc, 1/4"-18, Brass

- taper

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - steering shaft

2шт.

Part of Seal Kit, P/N 1275479C2

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

24

1273671C1

VALVE SPRING

SPRING - steering shaft

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

25

1273673C1

AXLE PIN

PIN - spring

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

26

1273672C1

RIVET

- steering shaft

1шт.

Part of Gear Service Kit, P/N 1963602C1

1шт.

27

1273670C91

BALL BEARING,25mm ID x 38mm OD x 11mm W

- steering gear

1шт.

28

1273233C1

ARM

- pittman

1шт.

29

99329C1

CYLINDER END CAP

CAP - wheel

1шт.

30

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

1шт.

31

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

32

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

1шт.

33

99328C1

WHEEL (STEERING)

WHEEL - steering

1шт.

34

1273231C1

COVER ASSY

COVER - steering column

1шт.

35

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

4шт.

892-11010

LOCK WASHER,M10

4шт.

36

1961804C1

DECAL

INSERT - steering wheel eagle

1шт.

1275479C2

STRIPPER PACKAGE

KIT - seal, Includes: Ref. 4, 7, 12, 13, 15, 23

1шт.

GASKET - side cover (Not used in this application)

1шт.

1963602C1

STRIPPER PACKAGE

KIT - gear service, Includes: Ref. 8, 9, 17, 23, 24, 25, 26

1шт.
