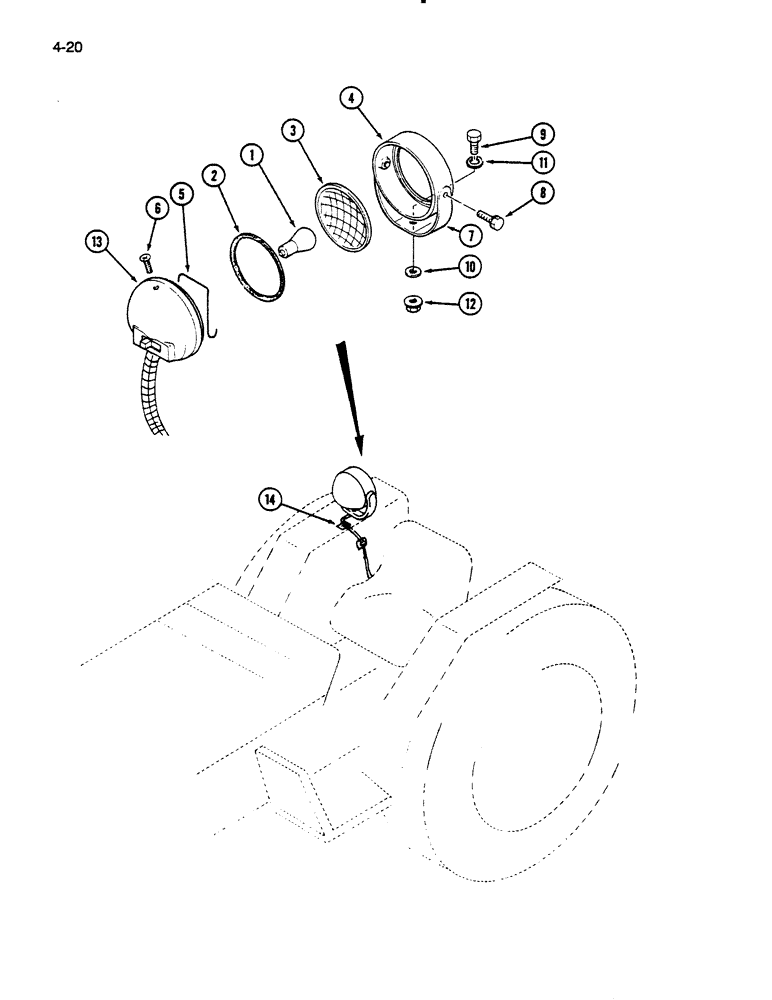

Запчасти Case IH 235 (4-20) - REAR WORK LAMP (04) - ELECTRICAL SYSTEMS

1963613C1

KIT

- work lamp (Replaces 973043C94), Includes: Ref. 1 - 14

1шт.

1

974264C2

LAMP BASE

BULB - work lamp

1шт.

2

1963612C1

GASKET

- lens

1шт.

3

974263C2

LENS

- work lamp

1шт.

4

NSS

NOT SOLD SEPARAT

RING ASSEMBLY - lamp

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - support

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - housing

1шт.

7

974265C2

BRACKET

- housing

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT - M6 x 12 mm

2шт.

9

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

10

25552R1

WASHER,.344" x 1" x .098", HDN

- flat, 11/32 x 1 x 3/32 inch

1шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

31082R1

NUT,M8 x 1.25, Flg, Cl 8

- flange, M8, Grade 10

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

14

NSS

NOT SOLD SEPARAT

CLIP - cable

3шт.
