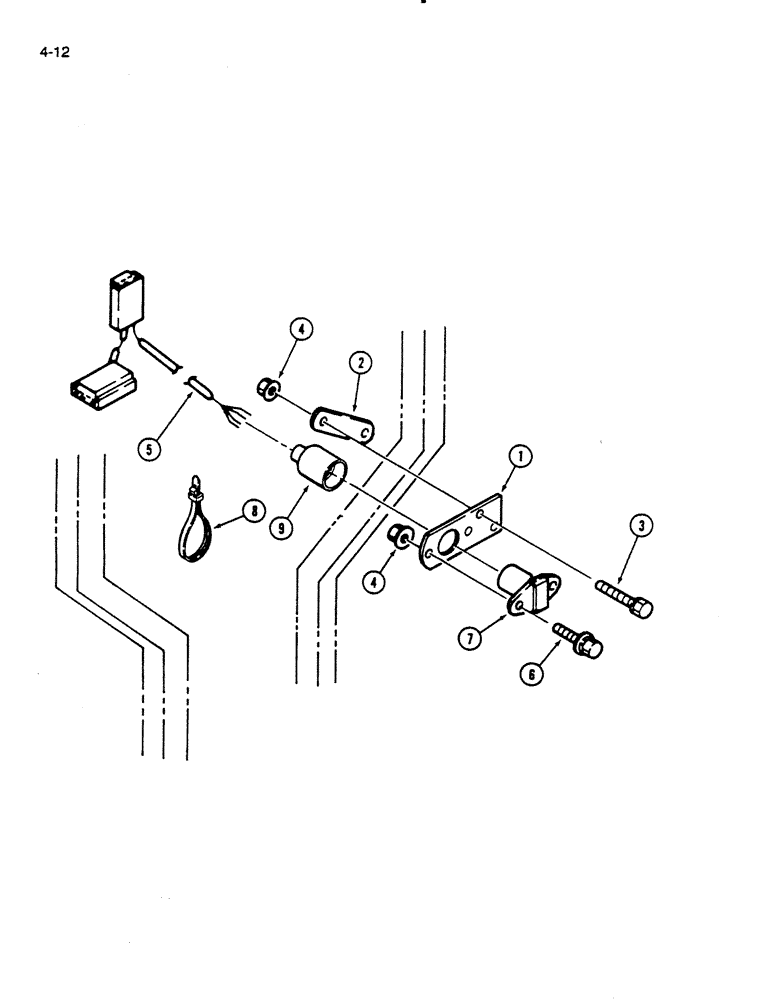

Запчасти Case IH 235 (4-12) - AUXILIARY ELECTRIC OUTLET KIT (04) - ELECTRICAL SYSTEMS

99413C92

STRIPPER PACKAGE

CONNECTOR KIT - seven terminal outlet, Includes: Ref. 1 - 9

1шт.

1

1962614C2

PLATE ASSY.

PLATE - connector

1шт.

2

1273425C1

PLATE ASSY.

PLATE - backing

1шт.

3

7120024

BOLT

- hex, M8 x 70 mm (Replaces 814-8070)

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

4

30986R1

NUT,M8 x 1.25, Flg, Cl 8

- flange lock, M8, Grade 10 (Replaces 825-1108)

4шт.

5

1273750C1

HARNESS

- connector

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

7

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR ASSEMBLY - 7 point auxiliary outlet

1шт.

8

869707C1

STRAP,368.3mm L

- tie

3шт.

9

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

BOOT - wiring harness, M8 x 45 (Replaces 481849C1)

2шт.
