Запчасти Case IH 235 (4-08) - WIRING HARNESS AND BATTERY, HYDROSTATIC TRANSMISSION (CONTD) (04) - ELECTRICAL SYSTEMS

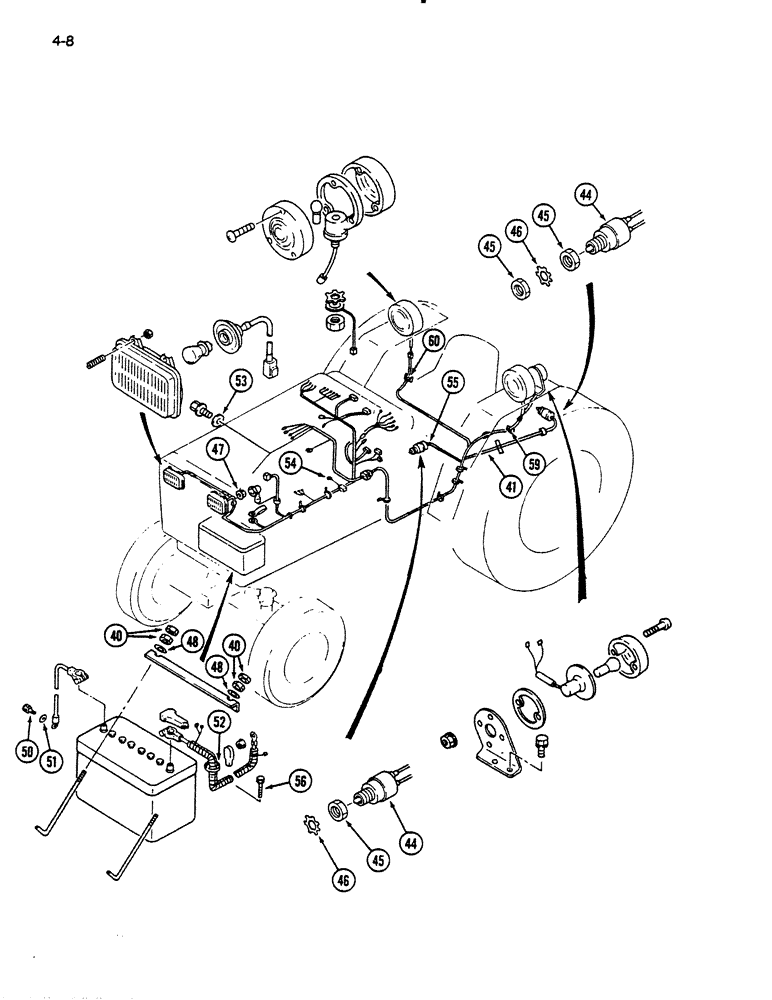

Схема запчастей Case IH 235 - (4-08) - WIRING HARNESS AND BATTERY, HYDROSTATIC TRANSMISSION (CONTD) (04) - ELECTRICAL SYSTEMS
40
44
53
51
45
45
60
52
59
54
41
47
48
48
40
50
46
55
46
45
56
44

Артикул

Название

Примечание

Количество

40

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

4шт.

41

1962719C1

HARNESS

- wiring

1шт.

44

1271754C2

SWITCH

ASSEMBLY - safety, Includes: Ref. 45 & 46

2шт.

ref #44 (P/N 1271754C2) - See SB 05 787

1шт.

45

NSS

NOT SOLD SEPARAT

NUT - M16 x 1.5

4шт.

46

NSS

NOT SOLD SEPARAT

WASHER - safety switch

2шт.

47

934871R1

NUT,M5, Cl 5

- hex, M5, Grade 5

1шт.

48

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

50

1962561C1

BOLT (SPREADER),M8 - 1.25 x 25mm

BOLT - hex, special

1шт.

51

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

52

1962564C1

DISC

- plate

2шт.

53

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER - lock, external tooth, M8

1шт.

54

1962562C1

CONNECTOR, ELEC

LINK - fusible

1шт.

55

1963134C1

CLAMP

- cable (Replaces 1273580C1)

1шт.

56

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

59

117961

GROMMET,3/8" ID x 27/32" x .062"

- light harness

2шт.

60

50202H

GROMMET

- 11/32 ID x 5/8 OD x 1/4 inch thick

1шт.

Выбрано товаров: 19
