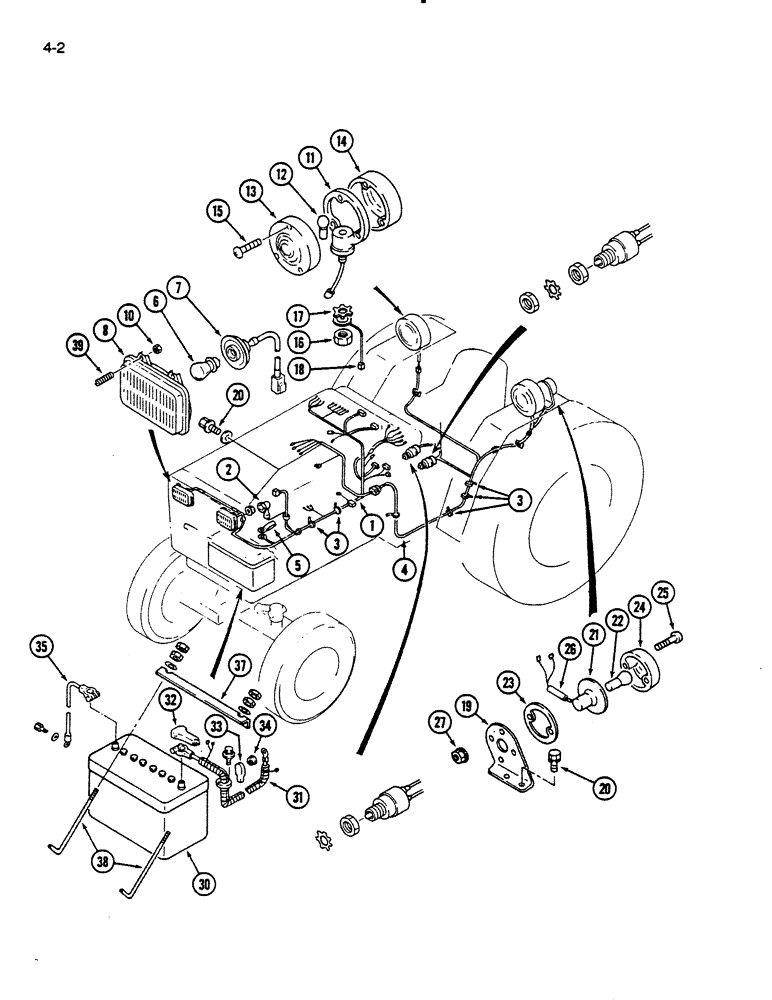

Запчасти Case IH 235 (4-02) - WIRING HARNESS AND BATTERY, MECHANICAL TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

99179C1

HARNESS

- wiring, front

1шт.

2

1271727C1

INSULATOR

NIPPLE - wire terminal

1шт.

3

111619C1

STRAP

- tie

7шт.

4

1962559C1

HARNESS

- rear lighting

1шт.

5

1271755C1

CLAMP

- wire harness

3шт.

1271730C91

LIGHT

LAMP ASSEMBLY - head, Includes: Ref. 6 - 8

2шт.

6

1271731C1

BULB

- head lamp

2шт.

7

NSS

NOT SOLD SEPARAT

SOCKET - head lamp

2шт.

8

NSS

NOT SOLD SEPARAT

UNIT - semi sealed beam

2шт.

10

934871R1

NUT,M5, Cl 5

- flange, M5

6шт.

1271734C91

LIGHT ASSY.

LAMP ASSEMBLY - signal, Includes: Ref. 11 - 18

2шт.

11

NSS

NOT SOLD SEPARAT

GASKET - lamp, rubber

2шт.

12

A41264

BULB,#1156, 12V

Lamp #1156, 12V

2шт.

13

NSS

NOT SOLD SEPARAT

LENS - front

2шт.

14

NSS

NOT SOLD SEPARAT

LENS - rear

2шт.

15

NSS

NOT SOLD SEPARAT

SCREW - M4 x 40 mm

6шт.

16

825-1110

NUT,M10, Cl 8

- hex, M10, Grade 10

2шт.

17

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

2шт.

18

NSS

NOT SOLD SEPARAT

WIRE - signal lamp, 8-5/64 inch long (Order B17725 and cut to length, 1-54773R1 terminal, 1-224058R1 terminal and 2-165565R1, or 2-238100R1, or 2-915073R1 terminal)

2шт.

19

1265152C1

BRACKET

- tail lamp

1шт.

20

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

1271739C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 21 - 27

2шт.

21

NSS

NOT SOLD SEPARAT

SOCKET - tail lamp

2шт.

22

71421

BULB,R5W, 12V, 5W

- tail lamp (No. 67)

2шт.

23

NSS

NOT SOLD SEPARAT

GASKET - tail lamp, rubber

2шт.

24

NSS

NOT SOLD SEPARAT

LENS - tail lamp

2шт.

25

NSS

NOT SOLD SEPARAT

SCREW - M3 x 30 mm

2шт.

26

NSS

NOT SOLD SEPARAT

TUBE - tail lamp

2шт.

27

934871R1

NUT,M5, Cl 5

- flange, M5

2шт.

30

BPR22NF

DRY BATTERY

- 12 volt

1шт.

31

99182C1

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, positive, Includes: Ref. 32 & 33

1шт.

32

NSS

NOT SOLD SEPARAT

CAP - battery terminal

1шт.

33

NSS

NOT SOLD SEPARAT

CAP - battery cable

1шт.

34

825-1108

NUT,Hex, M8, Cl 8

- flange lock, M8

2шт.

35

99184C1

CABLE PULLING GRIP

CABLE - battery ground

1шт.

37

127176OC1

BRACKET - battery hold down

1шт.

38

1271761C1

BOLT,M6 x 1 x 275mm

ROD - battery hold down

2шт.

39

1271733C1

VALVE SPRING

SPRING - headlight-adjusting

6шт.
