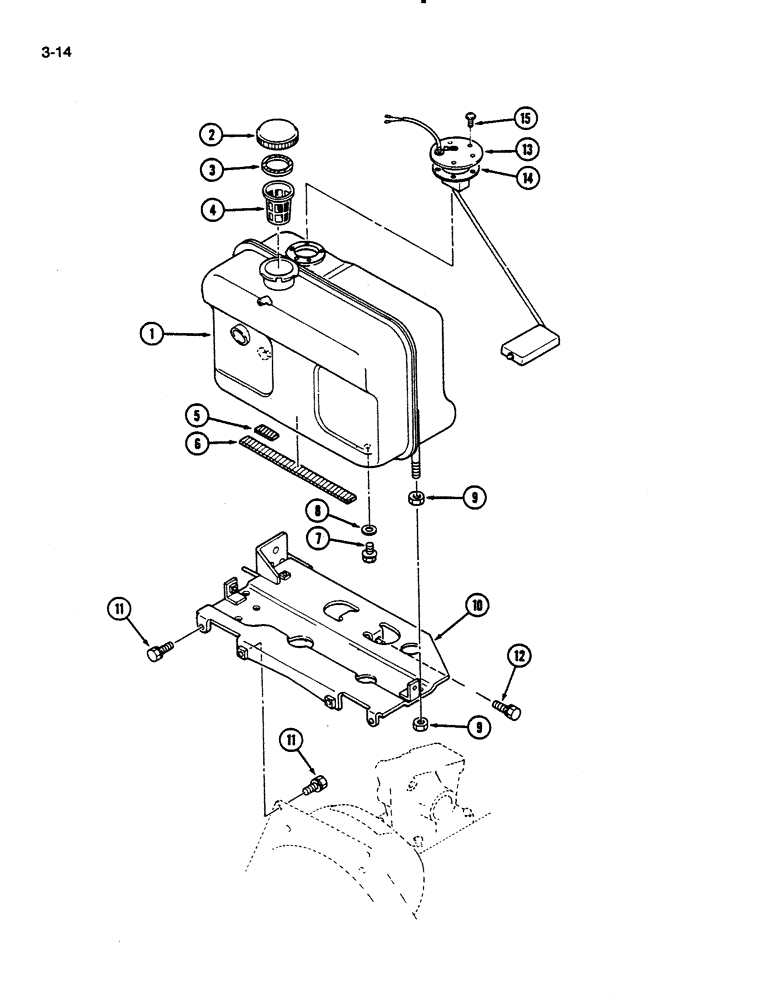

Запчасти Case IH 235 (3-14) - FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

1

1273622C1

FUEL TANK

TANK - fuel

1шт.

2

99395C1

CAP ASSY.

CAP - fuel tank

1шт.

3

1269627C1

SEAL

- fuel tank cap

1шт.

4

1269628C2

STRAINER ELEMENT

STRAINER - fuel

1шт.

Ref #4 - Fuel Strainer changed from C1 to C2. The C2 is a couple inches longer, either will work.

1шт.

5

1273624C1

STRIP

- cushion

1шт.

6

1269629C1

STRIP

- tank cushion

2шт.

7

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT - tank drain plug

1шт.

8

1275284C1

SEALING WASHER

SEAL - drain

1шт.

9

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

4шт.

10

1269632C1

BRACKET

- tank support

1шт.

11

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

12

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

13

1269633C1

GAUGE ASSY.

UNIT ASSEMBLY - fuel level sender

1шт.

14

1269634C1

GASKET

- fuel level sender

1шт.

15

30496R1

SCREW,Cross Pan Hd, M4 x 10

- pan head cross recess, M4 x 10 mm, Grade 4.8

5шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

5шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

5шт.
