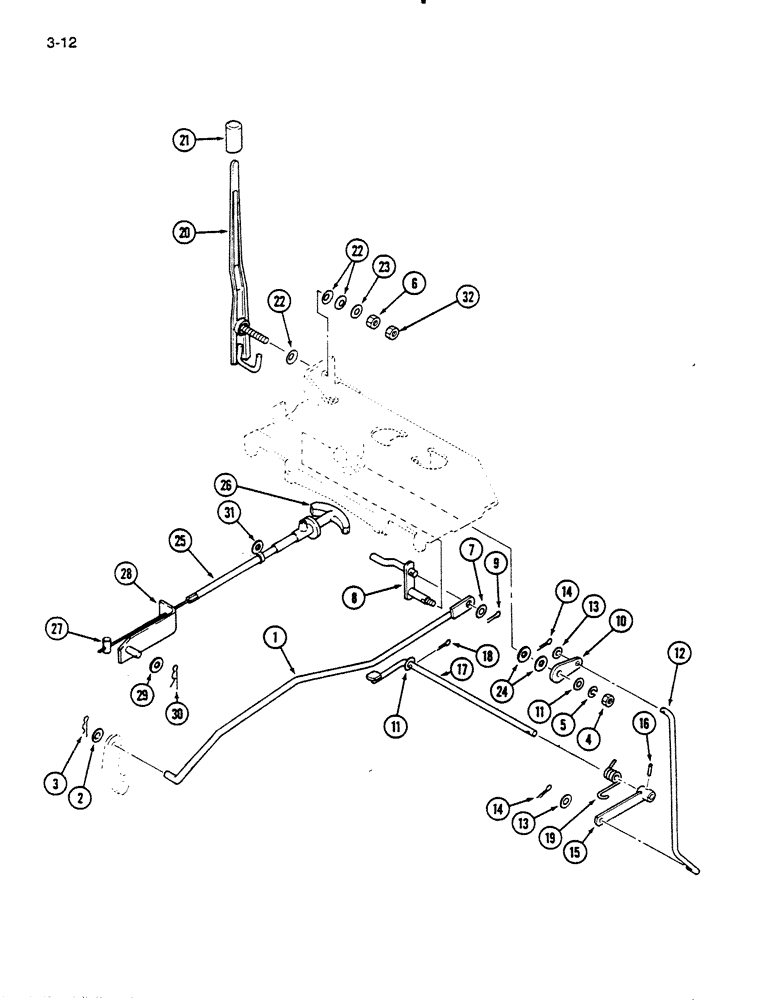

Запчасти Case IH 235 (3-12) - THROTTLE CONTROLS (03) - FUEL SYSTEM

1

1275090C1

ROD

- engine control

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

3

1269734C1

AXLE PIN

PIN - hair

1шт.

4

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

1шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

6

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.25

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

8

1282542C1

DRAG LINK

LINK - control

1шт.

9

30450R1

COTTER PIN,M2.5 x 16

PIN - cotter, 3 x 20 mm (Replaces 632-602)

1шт.

10

1269848C1

LEVER

- throttle linkage (Mechanical transmission)

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

12

1269849C1

ROD

- accelerator pedal (Mechanical transmission)

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

(Mechanical transmission) M6

2шт.

14

934788R1

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm (Mechanical transmission) (Replaces 632-578)

2шт.

15

1269850C1

ARM

- accelerator pedal (Mechanical transmission)

1шт.

16

30788R1

LOCK PIN,M3 x 16, Slotted

PIN - slotted spring, zink, 3 x 16 mm (Mechanical transmission) (Replaces 31114R1)

1шт.

17

99201C1

PEDAL

- accelerator (Mechanical transmission)

1шт.

18

30450R1

COTTER PIN,M2.5 x 16

PIN - cotter, 2-1/2 x 16 mm (Mechanical transmission) (replaces 632-602)

1шт.

19

1269852C1

VALVE SPRING

SPRING - accelerator pedal (Mechanical transmission)

1шт.

20

99103C1

LEVER

- engine throttle

1шт.

21

1962980C1

GRIP

KNOB - throttle lever (Replaces 1269854C1)

1шт.

22

1275095C1

SPRING WASHER

WASHER - spring

3шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 24 x 3 mm

1шт.

24

1282541C1

WASHER

- flat, special (Hydrostatic transmission)

2шт.

25

1962575C1

ELECTRICAL WIRE

CABLE ASSEMBLY - fuel shutoff, Includes: Ref. 26 & 27

1шт.

26

1963778C1

KNOB

- stop cable

1шт.

27

1963779C1

NUT

- stop cable

1шт.

28

1962576C1

JOINT TURNING

CONNECTOR - cable end

1шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

30

932952R1

COTTER PIN,M2 x 20

PIN - cotter, 2 x 20 mm (Replaces 632-580)

1шт.

31

1271755C1

CLAMP

HANGER - fuel shutoff cable

1шт.

32

1269793C1

NUT

- hex, jam, M10

1шт.
