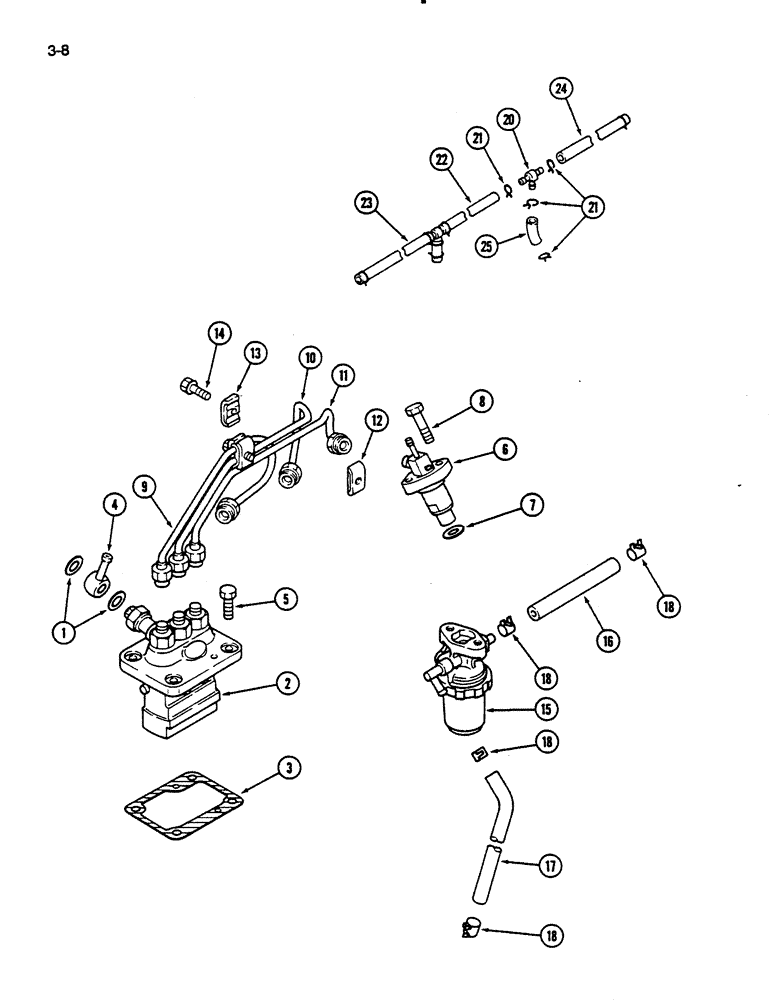

Запчасти Case IH 235 (3-08) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

1271994C1

SEALING WASHER

SEAL - washer

2шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figure 3-02

1шт.

3

1275096C1

KIT

SHIM KIT - injection pump adjusting

1шт.

4

1271998C1

TEE

- union

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

6

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection, See Figure 3-10

3шт.

7

1273000C1

GASKET

- nozzle holder

3шт.

8

30005R1

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

- hex, M8 x 35 mm

6шт.

9

1273001C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

10

1273002C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

11

1273003C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

12

1273004C1

CLAMP

- injection tubes

2шт.

13

1273005C1

CLAMP

- injection tubes

2шт.

14

30194R1

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, M6 x 25 mm

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, See Figure 3-06

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - fuel, 1/4 ID x 4-3/4 inch long (Order 427683C1 and, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - fuel, 1/4 ID x 14-11/64 inch long (Order 427683C1 and, Serial Range: cut-length)

1шт.

18

299486R1

HOSE CLAMP,#7, 7/16", Spring

CLAMP - hose

4шт.

1273010C91

PIPE CLAMP

HOSE ASSEMBLY - leak off, Includes: Ref. 20 - 25 and 427683C1 hose

1шт.

20

1273011C1

TEE

- fuel, leak off

2шт.

21

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP - hose

10шт.

22

NSS

NOT SOLD SEPARAT

HOSE - rubber, 5/32 ID x 3-5/32 inch (Order 417196C2 and, Serial Range: cut-length)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - rubber, 5/32 ID x 4-21/64 inch (Order 417196C2 and, Serial Range: cut-length)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - rubber, 5/32 ID x 10-1/32 inch (Order 417196C2 and, Serial Range: cut-length)

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE - rubber, 5/32 ID x 1-3/8 inch (Order 417196C2 and, Serial Range: cut-length)

2шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk rubber, 1/4 inch ID

1шт.

417196C2

HOSE

- bulk rubber, 5/32 inch ID

1шт.
