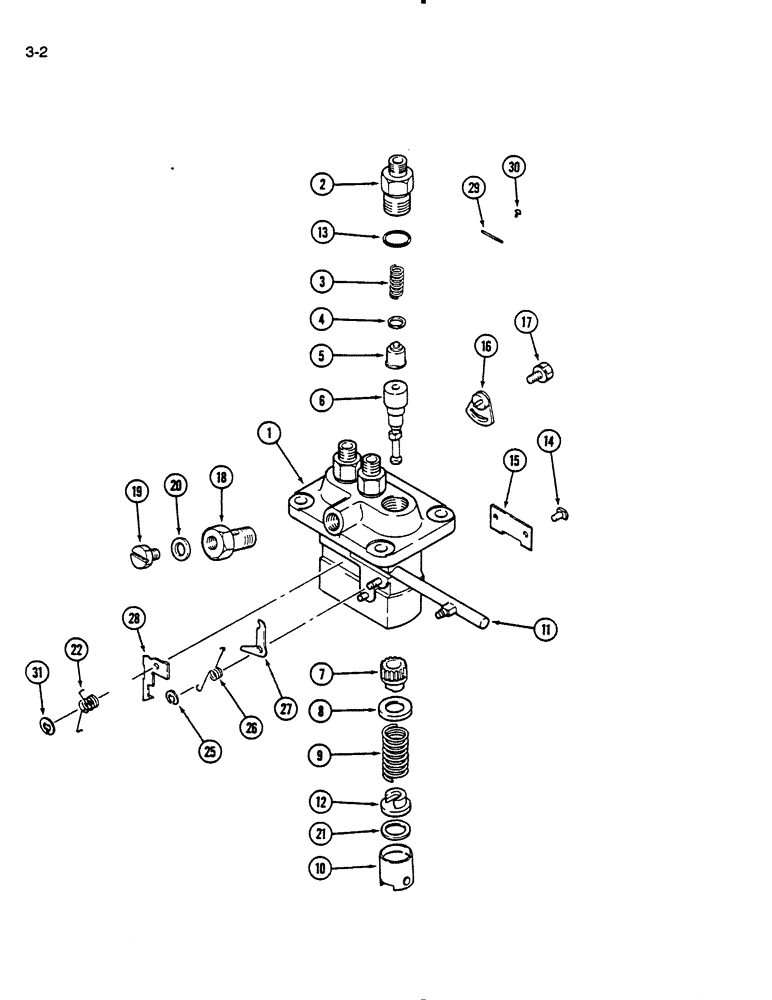

Запчасти Case IH 235 (3-02) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1271995C91

PUMP

ASSEMBLY - fuel injection, new, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - injection pump (Order 1271995C91)

1шт.

2

1273499C1

NOZZLE HOLDER

HOLDER - delivery valve

3шт.

3

1273500C1

VALVE SPRING

SPRING - delivery valve

3шт.

4

1273501C1

GASKET

- delivery valve

3шт.

5

1273502C1

LOCK VALVE

VALVE ASSEMBLY - delivery

3шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT ASSEMBLY - pump

3шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE - plunger control

3шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING - pump plunger

3шт.

10

NSS

NOT SOLD SEPARAT

TAPPET ASSEMBLY - pump

3шт.

11

NSS

NOT SOLD SEPARAT

RACK ASSEMBLY - control

3шт.

12

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

3шт.

13

1273511C1

O-RING

O-RING

3шт.

14

NSS

NOT SOLD SEPARAT

PIN - tappet guide

3шт.

15

NSS

NOT SOLD SEPARAT

PLATE - pump

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - adjusting

2шт.

17

NSS

NOT SOLD SEPARAT

BOLT - with washer

2шт.

18

1273517C1

SCREW

- hollow(Replaces 1273516C1)

1шт.

19

1273516C1

SCREW

- air bleeder(Replaces 1273517C1)

1шт.

20

1273518C1

WASHER

- breather

1шт.

21

NSS

NOT SOLD SEPARAT

SHIM - plate

1шт.

22

1273519C1

VALVE SPRING

SPRING - return

1шт.

25

1273359C1

RING

E-RING - pump

1шт.

26

1273360C1

VALVE SPRING

SPRING - set

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - set

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - set

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

30

NSS

NOT SOLD SEPARAT

RIVET - nameplate

2шт.

31

1962757C1

CIRCLIP

E-RING - pump

1шт.
