(2-26) - GASKET KITS

Запчасти Case IH 235 (2-26) - GASKET KITS (02) - ENGINE

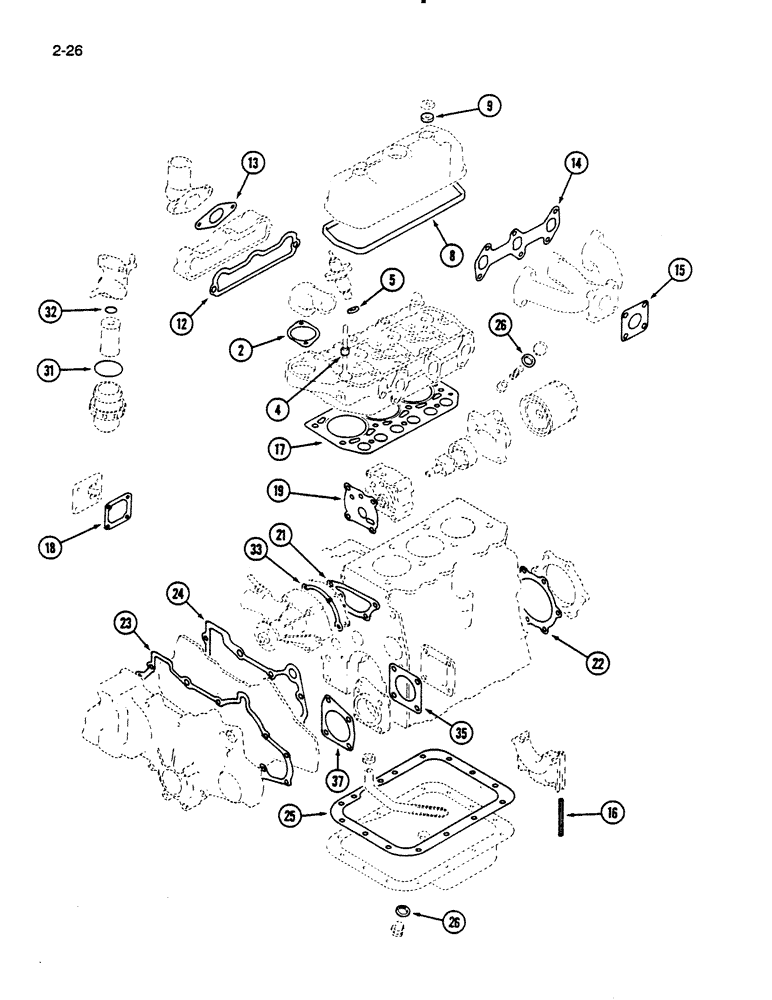

Схема запчастей Case IH 235 - (2-26) - GASKET KITS (02) - ENGINE
33
17
26
21
31
2
26
25
18
35
9
15
4
32
12
22
24
23
8
37
19
16
13
5
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1962923C1

GASKET KIT

- engine overhaul (Replaces 1273494C91), Includes: Ref. 2 - 37

1шт.

1282981C91

GASKET KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 15

1шт.

2

1273088C1

GASKET

- thermostat outlet

2шт.

4

1271981C1

SEAL

SEAL - valve

6шт.

5

1273000C1

GASKET

- nozzle holder

3шт.

8

1271926C1

GASKET

- cover, cylinder head

1шт.

9

IH1273078C1

SEAL ASSY.

- oil, rocker cover

2шт.

12

1273107C1

MANIFOLD GASKET

- intake manifold

1шт.

13

1273109C1

GASKET

- inlet elbow

1шт.

14

1273111C1

MANIFOLD GASKET

- exhaust manifold

1шт.

15

1273104C1

GASKET

- exhaust pipe

1шт.

16

1271776C1

SEAL

SEAL - side, main bearing

4шт.

17

1271921C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

18

1273048C1

GASKET

- cover, governor

1шт.

19

1273064C1

GASKET

- oil pump

1шт.

21

1273086C1

GASKET

- water pump

1шт.

22

1271783C1

GASKET

- oil seal

1шт.

23

1271909C1

GASKET

- gear case

1шт.

24

1271785C1

GASKET

- front plate

1шт.

25

1271907C1

OIL PAN GASKET SET

- oil pan

1шт.

26

1271905C1

GASKET

- drain plug

2шт.

31

NSS

NOT SOLD SEPARAT

O-RING - filter cup

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - element

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - water pump

1шт.

35

1271913C1

GASKET

- oil pump cover

1шт.

37

1271911C1

GASKET

- pump gear housing

1шт.
