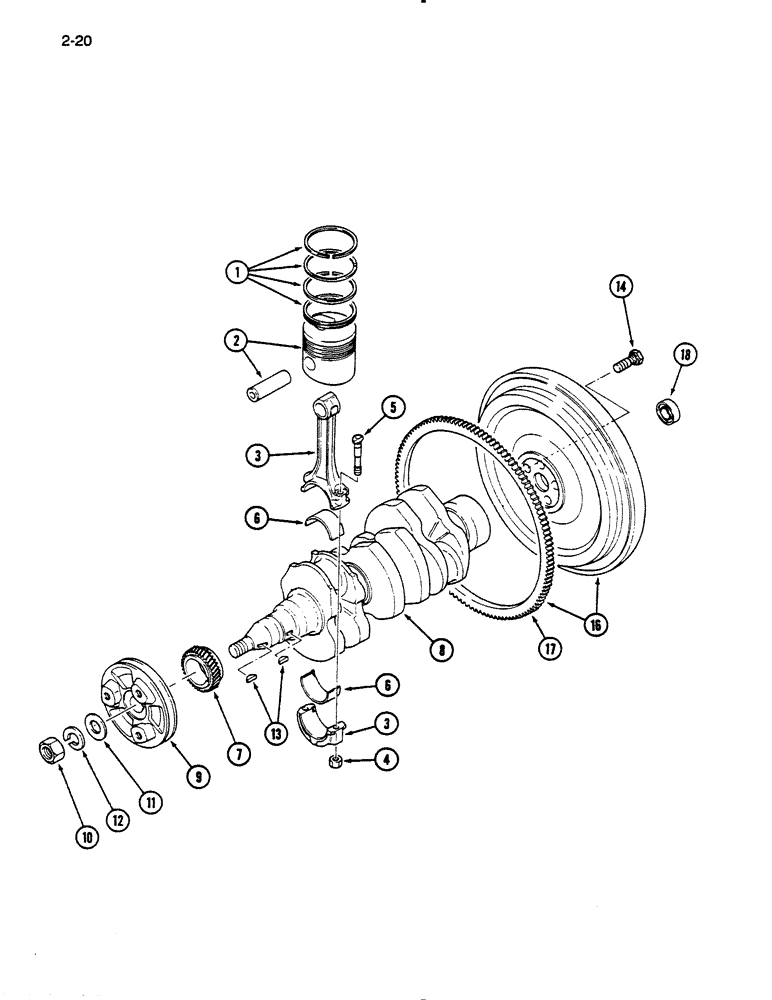

Запчасти Case IH 235 (2-20) - PISTON, CONNECTING ROD, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

1963638C1

RING

KIT - piston, standard (Replaces 1271927C1)

3шт.

1

1963639C1

RING

KIT - piston, 0.25 mm oversize (Replaces 1271928C1)

3шт.

1

1963640C1

RING

KIT - piston, 0.50 mm oversize (Replaces 1271929C1)

3шт.

1

1963641C1

RING

KIT - piston, 0.75 mm oversize (Replaces 1271930C1)

3шт.

Ref #1 - None of the Ring Kit's is used on the 234 or 235 Tractors below S/N44456.

1шт.

2

1271939C2

PISTON ASSY.

KIT - piston and pin, standard

3шт.

2

1271940C2

PISTON ASSY.

KIT - piston and pin, 0.25 mm oversize

3шт.

2

1271941C2

PISTON ASSY.

KIT - piston and pin, 0.50 mm oversize

3шт.

2

1271942C2

PISTON ASSY.

KIT - piston and pin, 0.75 mm oversize

3шт.

3

1271951C91

ROD

ASSEMBLY - connecting, Includes: Ref. 4 & 5

3шт.

4

1271953C1

NUT

- connecting rod

6шт.

5

1271954C1

BOLT,M8 x 1 x 50.50mm

BOLT - connecting rod

6шт.

6

1271955C1

BEARING SET

BEARING KIT - connecting rod, standard

3шт.

6

1271956C1

BEARING SET

BEARING KIT - connecting rod, 0.25 mm undersize

3шт.

6

1271957C1

BEARING SET

BEARING KIT - connecting rod, 0.50 mm undersize

3шт.

6

1271958C1

BEARING SET

BEARING KIT - connecting rod, 0.75 mm undersize

3шт.

7

1271963C1

GEAR WHEEL

GEAR - crankshaft, front

1шт.

8

1271964C1

CRANKSHAFT

- engine

1шт.

9

1271966C2

PULLEY

- crankshaft

1шт.

10

1273140C1

NUT

- crankshaft, M18

1шт.

11

895-11018

WASHER,M18 x 34 x 3

- flat, 20 x 34 x 3 mm (Replaces 895-12018)

1шт.

12

892-11018

LOCK WASHER,M18

WASHER - lock, 18 mm

1шт.

13

1271974C1

KEY

- Woodruff, 5 x 19 mm

2шт.

14

1271833C2

FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm

BOLT - flywheel

5шт.

16

1271967C91

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 17

1шт.

17

1271969C1

GEAR WHEEL

GEAR - ring

1шт.

18

1273355C91

BEARING, BALL,15 mm ID x 32 mm OD x 9 mm

BEARING ASSEMBLY - ball

1шт.
