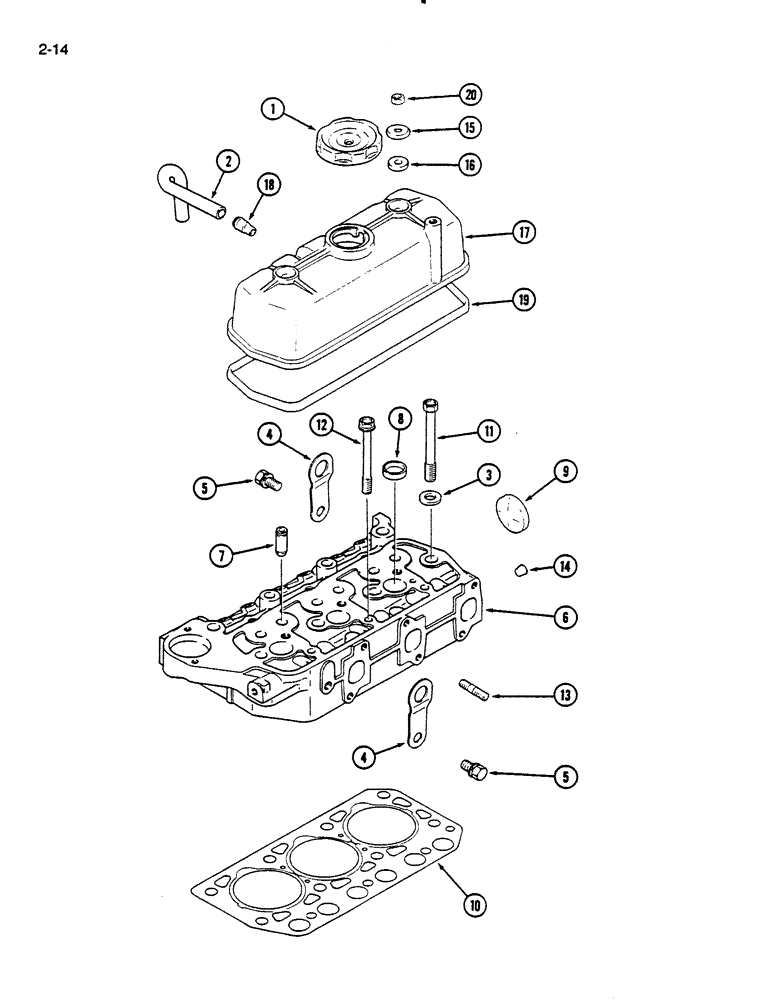

Запчасти Case IH 235 (2-14) - CYLINDER HEAD AND COVER (02) - ENGINE

1

1271914C1

CYLINDER END CAP

CAP - oil filler

1шт.

2

1271915C1

HOSE,9.00 mm ID x 175.00 mm

- Breather 9.00 mm ID x 175.00 mm

1шт.

3

1273354C1

WASHER

- head bolt, 23 mm OD

8шт.

4

1271916C1

SUPPORT ASSY.

HOOK - lift

2шт.

5

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

6

1963635C1

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Replaces 1271917C91), Includes: Ref. 7 - 9

1шт.

7

1271920C1

TUBE,6.6 mm ID, 12 mm OD, 55 mm Length

GUIDE - valve, intake and exhaust

6шт.

8

30591R1

PLUG,M25, Tapered

- tapered cup, 25 mm OD

3шт.

9

30734R1

PLUG,M45, Tapered

- tapered cup, 45 mm OD

1шт.

10

1271921C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

11

1271828C1

BOLT,Cyl Hd, Hex, M12 x 1.25 x 98mm

BOLT - cylinder head, 98 mm long

8шт.

12

1271820C1

BOLT,Cyl Hd, Hex Flg, M10 x 1.25 x 90mm

BOLT - cylinder head, 90 mm long

3шт.

13

1273129C1

STUD

- threaded, M8 x 25 mm

1шт.

14

444689

PLUG,Hex Soc, 1/8"-27, Brass

- hex socket head, 1/8-27 automotive PT

1шт.

15

1273353C1

WASHER

- special

2шт.

16

1273078C1

SEAL ASSY.

- oil

2шт.

17

1271924C91

COVER ASSY

COVER ASSEMBLY - cylinder head, Includes: Ref. 18

1шт.

18

1271925C1

TUBE,7 mm ID, 10.8 mm OD, 75 mm Length

- breather hose

1шт.

19

1271926C1

GASKET

- cover

1шт.

20

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.
