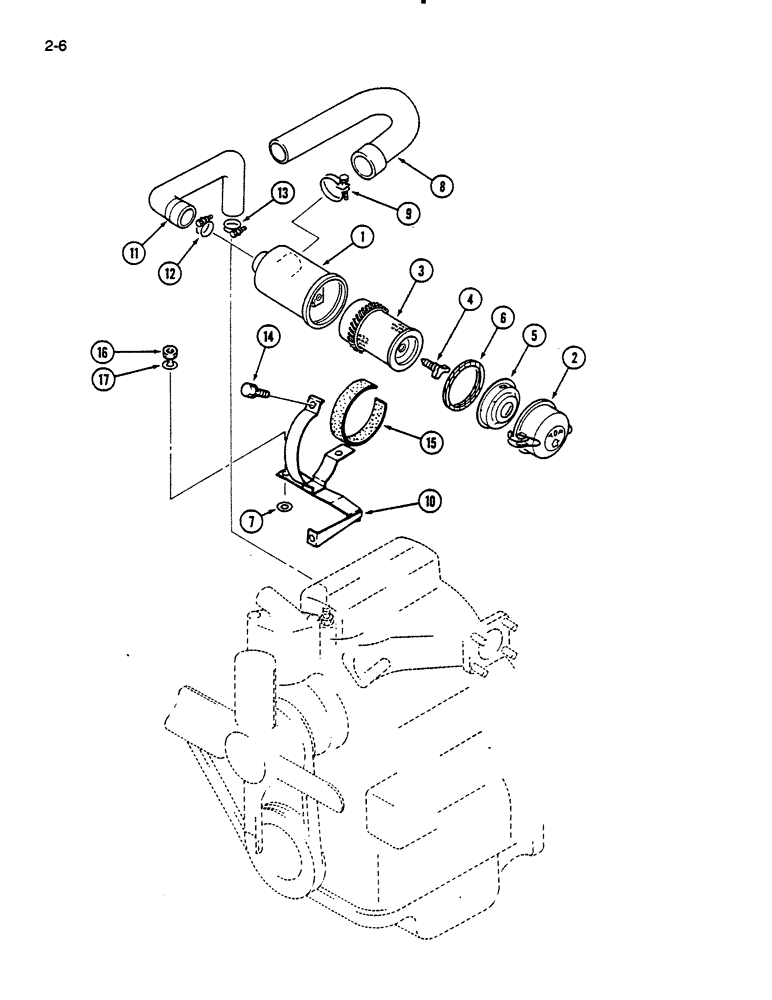

Запчасти Case IH 235 (2-06) - AIR CLEANER SYSTEM (02) - ENGINE

1269606C91

CLEANER ASSY.

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

1269656C1

COVER ASSY

COVER - air cleaner

1шт.

3

1269652C1

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.

4

1269653C1

BOLT

BOLT - element attaching

1шт.

5

1269654C1

COVER ASSY

COVER - air cleaner

1шт.

6

1269655C1

SEAL

SEAL - cover

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

8

1275117C1

INTAKE AIR HOSE,40.00 mm ID, 44.00 mm ID x 388.00 mm

HOSE - air cleaner

1шт.

9

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose

1шт.

10

99101C1

BRACKET

- air cleaner support

1шт.

11

1269659C1

HOSE,44.00 mm ID x 236.50 mm

- Air cleaner 44.00 mm ID x 236.50 mm

1шт.

12

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose

1шт.

13

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose

1шт.

14

1014921C1

BOLT

BOLT - hex, M8 x 30 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

15

1269661C2

STRIP

- rubber

1шт.

16

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

1шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.
