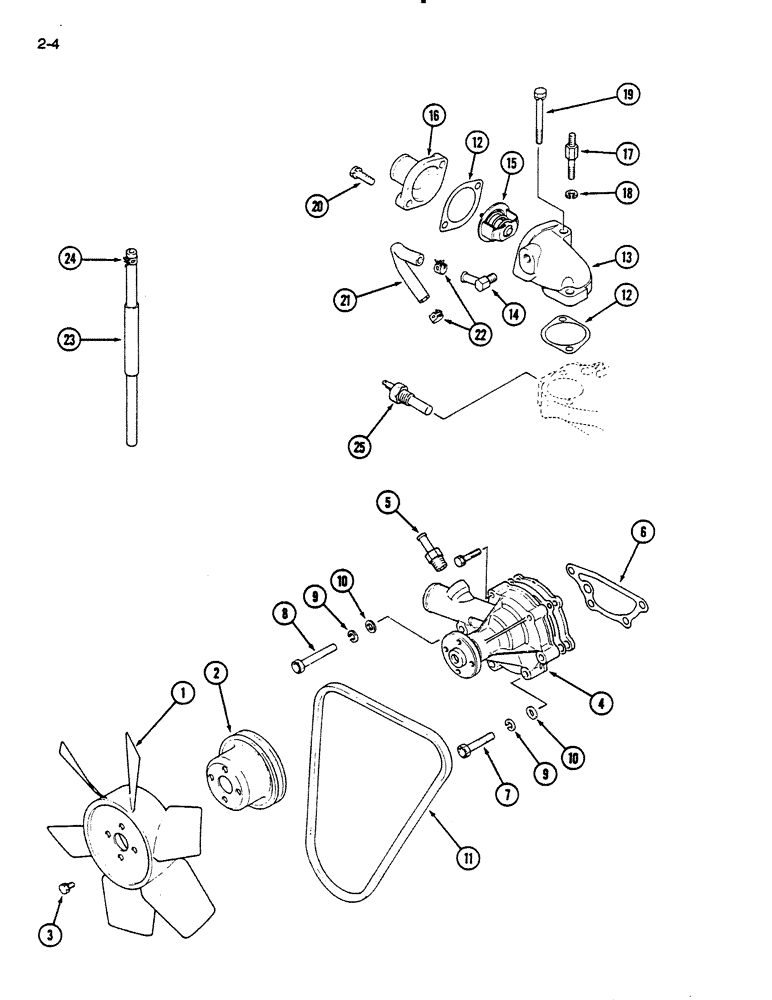

Запчасти Case IH 235 (2-04) - WATER PUMP (02) - ENGINE

1

1275228C1

FAN

- cooling

1шт.

2

1273084C1

PULLEY

- water pump

1шт.

3

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, M6 x 12 mm

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

4

1273085C91

PUMP

ASSEMBLY - water, Includes: Ref. 5

1шт.

1273085C91R

REMAN-WATER PUMP

235 (1/88-12/88)

1шт.

1273085C91C

CORE-WATER PUMP

Return Number

1шт.

5

1273096C1

FITTING

- hose, nipple, straight, 3/8 PT

1шт.

6

1273086C1

GASKET

- water, Serial Range: pump-block

1шт.

7

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

3шт.

8

813-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

11

676622R1

BELT,37.00" L

Fan 37.00" L

1шт.

12

1273088C1

GASKET

- thermostat housing

2шт.

13

1273089C1

ELBOW UNION

HOUSING - thermostat

1шт.

14

1273090C1

ELBOW UNION

FITTING - water outlet

1шт.

15

1273091C1

THERMOSTAT

- coolant, 180 degree F

1шт.

16

1273092C1

FITTING

HOUSING - thermostat

1шт.

17

1273100C2

STUD

- water outlet

1шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

19

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

20

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water bypass, 5-29/32 inch long (Order B90923 and, Serial Range: cut-length)

1шт.

22

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water drain, 13 inch long (Order B90923 and, Serial Range: cut-length)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water drain, 280 mm long (Order B90922 and, Serial Range: cut-length)

1шт.

24

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - wire hose, No. 8 type E

1шт.

25

1273102C1

SWITCH

SENDER - engine coolant temperature

1шт.

B90923

HOSE,0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

Heavy Duty 0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.

B90922

HOSE,0.25" ID x 50.00' Bulk, SAE 30R2 Type 1

0.25" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.
