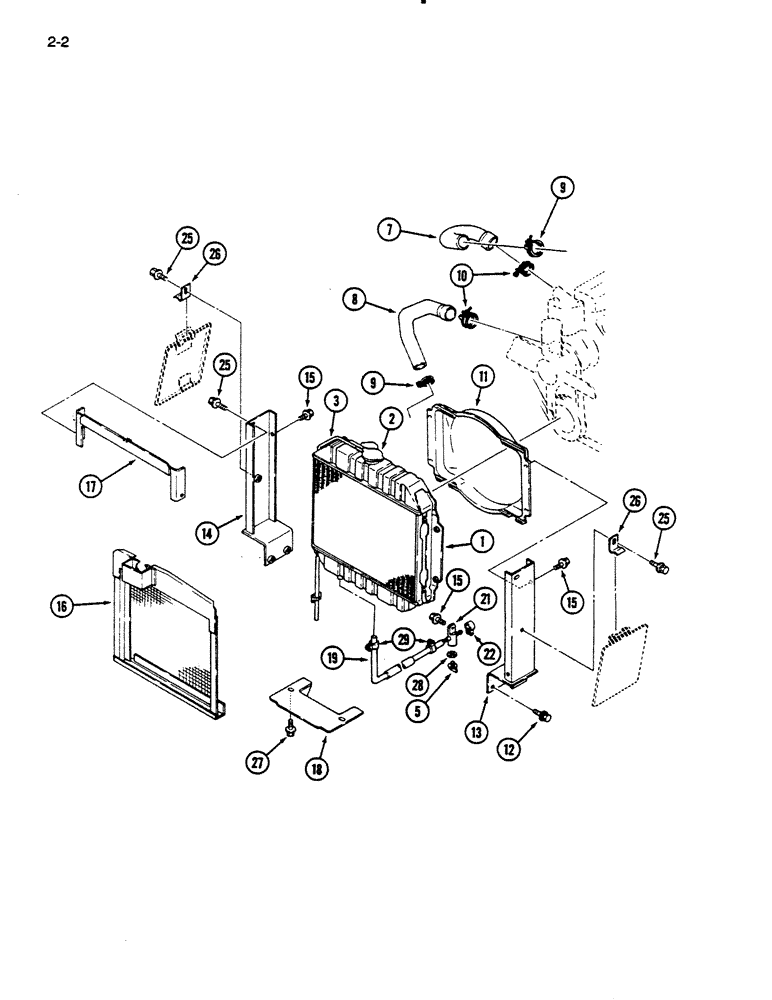

Запчасти Case IH 235 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

1962721C1

BODY

RADIATOR ASSEMBLY - engine (Replaces 99107C1)

1шт.

2

1269639C1

CAP

- radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - overflow, 23-5/8 inch long (Order B90923 and, Serial Range: cut-length)

1шт.

5

1275078C1

LOCK VALVE

VALVE - drain

1шт.

7

1275081C1

RADIATOR HOSE,35.00 mm ID x 80.00 mm

Inlet 35.00 mm ID x 80.00 mm

1шт.

8

1269609C1

HOSE,35.00 mm ID x 85.00 mm

- Outlet 35.00 mm ID x 85.00 mm

1шт.

9

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose

2шт.

10

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose

2шт.

11

99109C1

SHROUD

- fan

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

13

99105C2

BRACKET

- radiator support, left

1шт.

14

99104C2

BRACKET

- radiator support, right

1шт.

15

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

16

99108C1

SCREEN

- radiator

1шт.

17

99106C2

PLATE ASSY.

PLATE - radiator support

1шт.

18

99111C1

COVER ASSY

COVER - radiator, bottom

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - radiator, drain, 10-1/4 inch long (Order B90923 and, Serial Range: cut-length)

1шт.

21

1269622C1

TEE

- radiator, drain

1шт.

22

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

1шт.

25

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

26

1962581C1

VALVE SPRING

SPRING - cover (Replaces 1962544C1)

2шт.

27

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

28

1275077C1

GASKET

- drain cock

1шт.

29

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

2шт.

B90923

HOSE,0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

Heavy Duty 0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.
