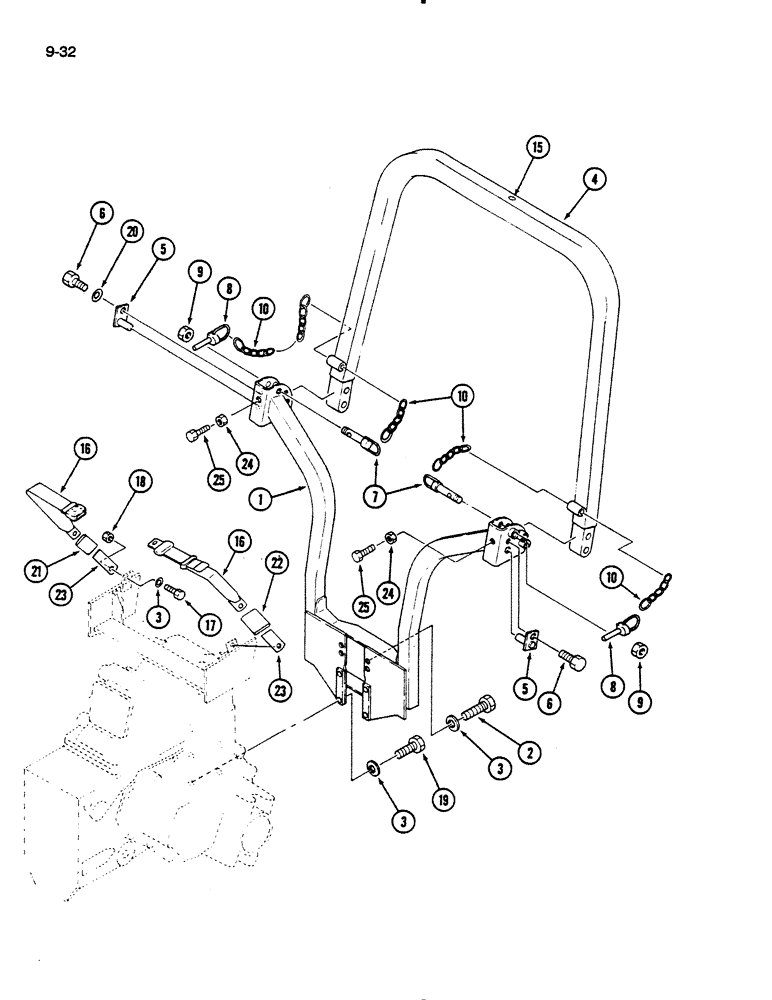

Запчасти Case IH 235 (9-32) - ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1963137C1

ARCH

FRAME ASSEMBLY - ROPS, foldable (Machinery item), Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

PILLAR - frame (Order 1963137C1)

1шт.

2

1962699C1

BOLT (SPREADER)

BOLT - hex, M12 x 40 mm

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

4

NSS

NOT SOLD SEPARAT

BAR - roll (Order 99021C91)

1шт.

5

99341C1

PIVOT PIN

PIN - hinge

2шт.

6

1962705C1

BOLT

- hex, 16 mm long

2шт.

7

99342C1

PIN

- threaded

2шт.

8

99343C1

PIN

- klik

2шт.

9

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

2шт.

10

99346C1

CHAIN (AG)

CHAIN - link

4шт.

15

1962694C1

PLUG

- frame

1шт.

16

1962695C1

SAFETY BELT

SAFETY BELT

1шт.

17

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

195-529

WASHER,7/16", SAE

- flat, 15/32 x 59/64 x 5/64 inch

1шт.

18

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

19

514-837

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, special

2шт.

20

892-11010

LOCK WASHER,M10

2шт.

21

1962696C1

NOZZLE HOLDER

HOLDER - seat belt, right

1шт.

22

1962697C1

NOZZLE HOLDER

HOLDER - seat belt, left

1шт.

23

1962698C1

PLATE ASSY.

PLATE - seat belt

2шт.

24

1269797C1

TUBE NUT

NUT -hex jam, M16

2шт.

25

1963125C1

BOLT (SPREADER),M16 - 1.5 x 49mm

BOLT - special, ROPS locking (Replaces 1962704C1)

2шт.
