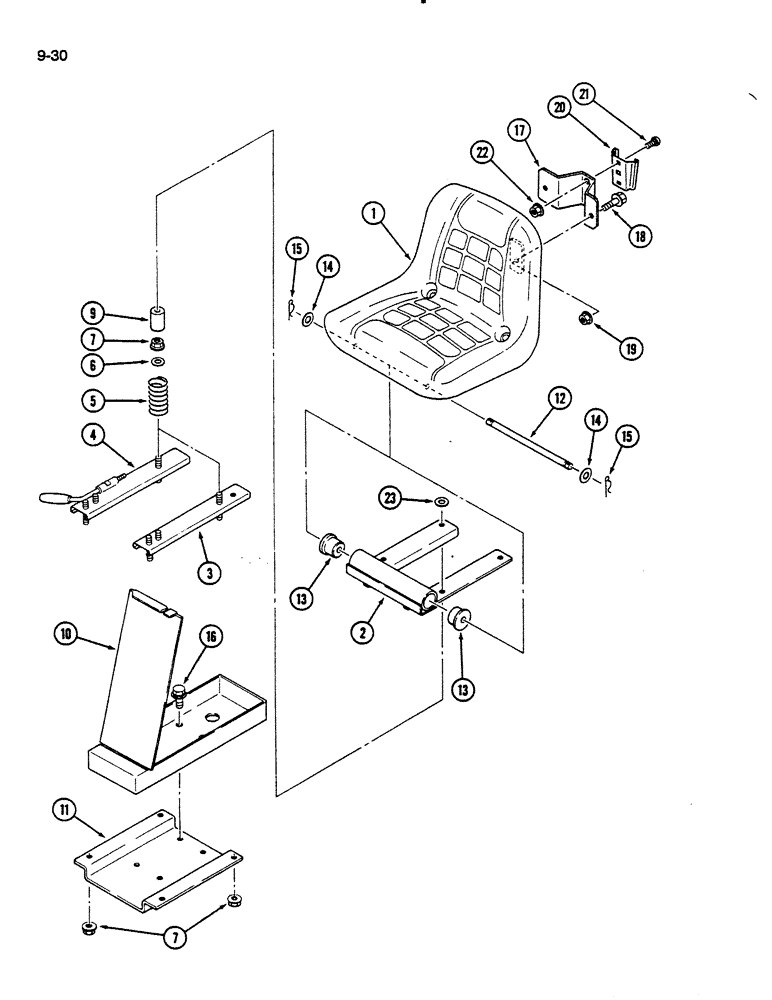

Запчасти Case IH 235 (9-30) - SEAT, TOOL BOX AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

99185C2

SEAT

ASSEMBLY - operator

1шт.

2

99186C1

BRACKET

- hinge

1шт.

3

99188C1

RAIL

- slide

1шт.

4

1962768C1

ADJUSTER

- seat (Replaces 99187C1)

1шт.

5

1962767C1

VALVE SPRING

SPRING - seat rail (Replaces 1962616C1)

2шт.

6

30183R1

WASHER,M8 x 21.5 x 2.5, HT

SPACER - seat rail

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

7

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

8шт.

9

99189C1

SEAT

STOPPER - rubber

2шт.

10

99190C1

BOX, TOOL

BOX - tool

1шт.

11

99191C1

BRACKET

- tool box

1шт.

12

1962587C1

SHAFT HOUSING

SHAFT - pivot

1шт.

13

99192C1

STOP

CUSHION - rubber

2шт.

14

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

15

1282706C1

AXLE PIN

PIN - hair

2шт.

16

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

4шт.

892-11010

LOCK WASHER,M10

4шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

17

99193C1

BRACKET

- mounting

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

3174964R1

LOCK NUT

- flange lock, 6 mm

2шт.

20

398976R1

BRACKET

- SMV emblem

1шт.

21

30473R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

BOLT - round head square neck, M8 x 16 mm

2шт.

22

825-1108

NUT,Hex, M8, Cl 8

- flange lock, 8 mm

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
